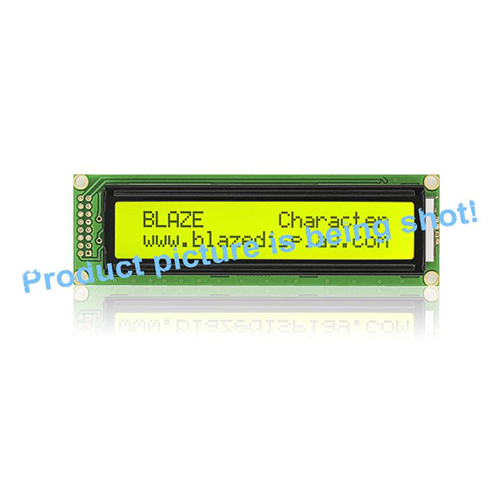

Part Number: BGB16064-01

● Graphic LCD 160 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T



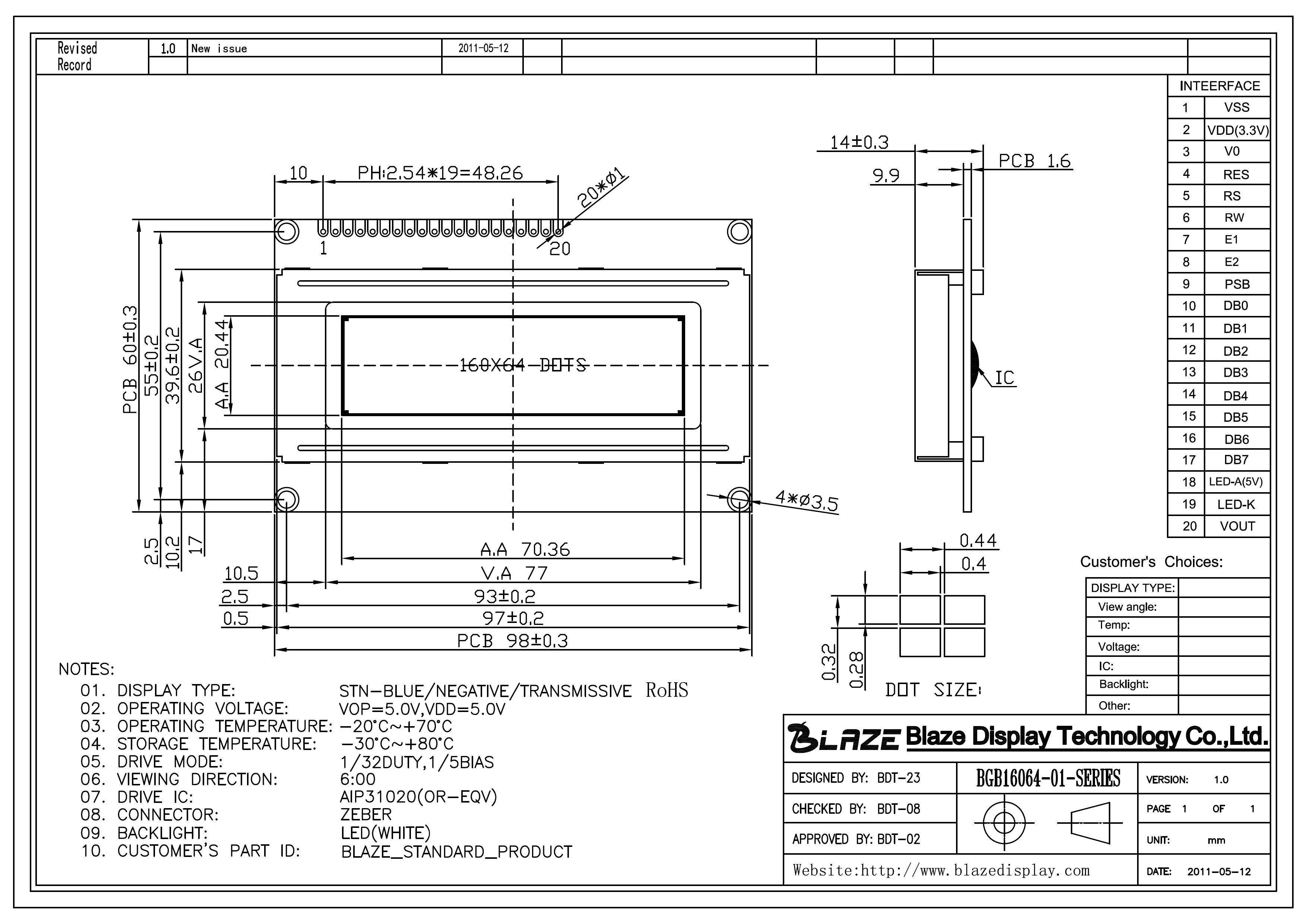

SPECIFICATIONS

Interface Pin Function

Pin No.

Symbol

Description

1

VSS

Ground(0V)

2

VDD(3.0-5.0V)

Power supply for logic

3

V0

Contrast Adjustment

4

RS(CS)

Data/ Instruction select signal

5

R/W(SID)

Serial data input

6

E(CLK)

Enable signal (Serial clock input)

7~14

DB0~DB7

Data bus line33

15

PSB

Serial/Parallel interface select

16

N.C

No connection

17

RST

reset

18

N.C

No connection

19

LED-A(3.3V)

Power supply for backlight

20

LED-K(0V)

Ground for backlight
