BDT-T2410-01
Model No. BDT-T2410-01

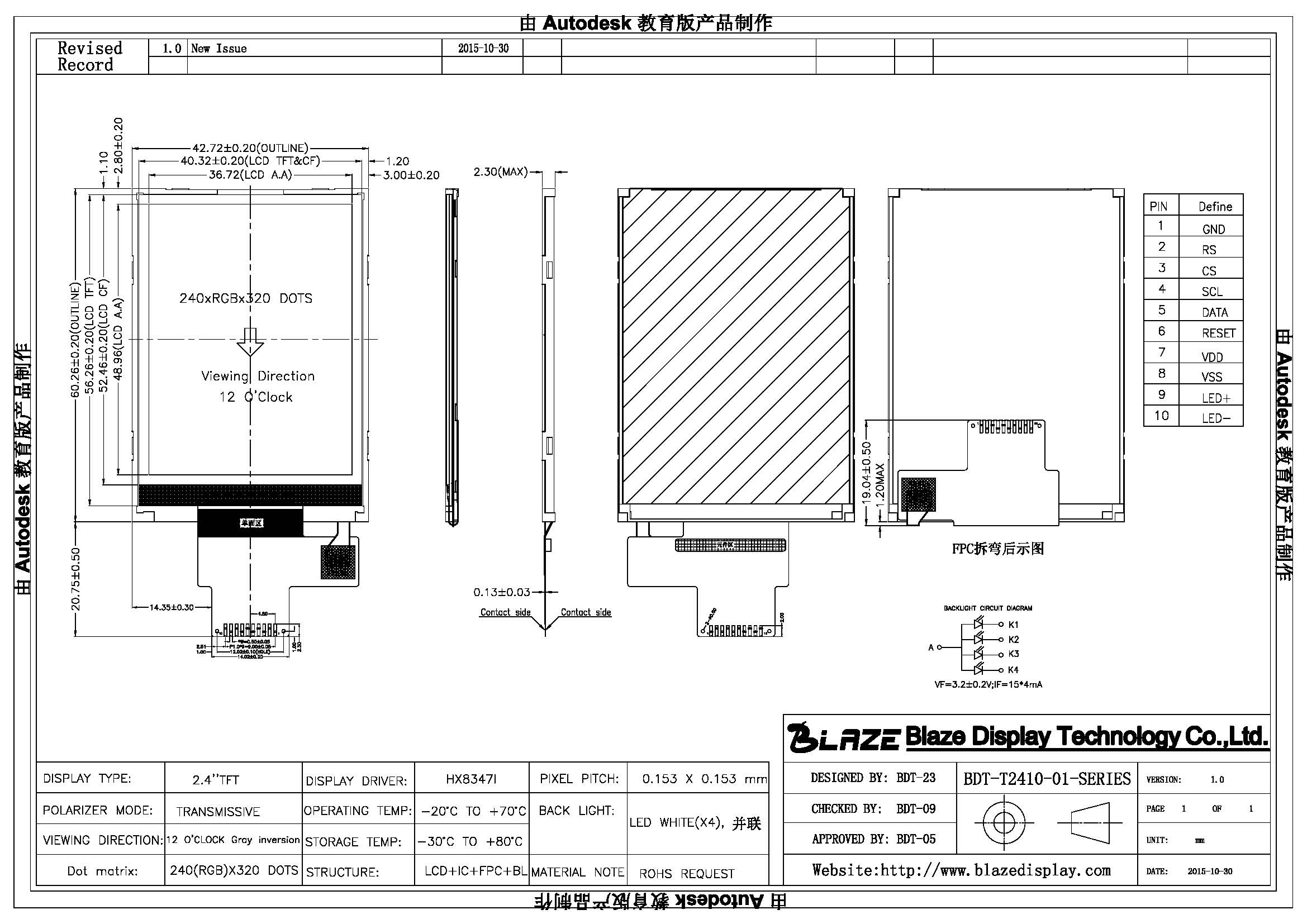

Outline size（mm）： 42.72 × 60.26 × 2.30
LCD TFT：40.32 × 56.26
Active Area： 36.72 × 48.96
Controller IC： HX83471.
Interface： SPI
TP: Optional
Backlight：LED
Part Number: BDT-T2410-01
● Display Format: 240 x 320
● Size: 2.4"
● View Direction:12H
● Interface: MCU
● Built-in Controller: HX83471
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
GND |
Ground |
|||||||||||
|
2 |
RS |
Command and Data select pin |
|||||||||||
|
3 |
CS |
Chip select pin |
|||||||||||
|
4 |
SCL |
Serial clock pin |
|||||||||||
|
5 |
DATA |
Serial data input/output PIN |
|||||||||||
|
6 |
RESET |
Reset pin |
|||||||||||
|
7 |
VDD |
power supply |
|||||||||||
|
8 |
VSS |
Ground |
|||||||||||
|
9 |
LED+ |
Anode pin of backlight |
|||||||||||
|
10 |
LED- |
Cathode pin of backlight |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
2.4 |
inch |
|||||||||||
|
Dot Matrix |
240 × RGB × 320 (TFT) |
dots |
|||||||||||
|
Module dimension |
42.72(W) × 60.26(H) × 2.30(D) |
mm |
|||||||||||
|
Active area |
36.72 × 48.56 |
mm |
|||||||||||
|
Dot pitch |
0.153 × 0.153 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max |
Unit |
||||||||
|
Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
||||||||
|
Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
||||||||
|
|
|||||||||||||
|
Electrical Characteristics |
|||||||||||||
|
Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|||||||
|
Supply Voltage For Analog |
VCC |
－ |
2.5 |
- |
3.3 |
V |
|||||||
