BDT-T2437-02
Model No. BDT-T2437-02

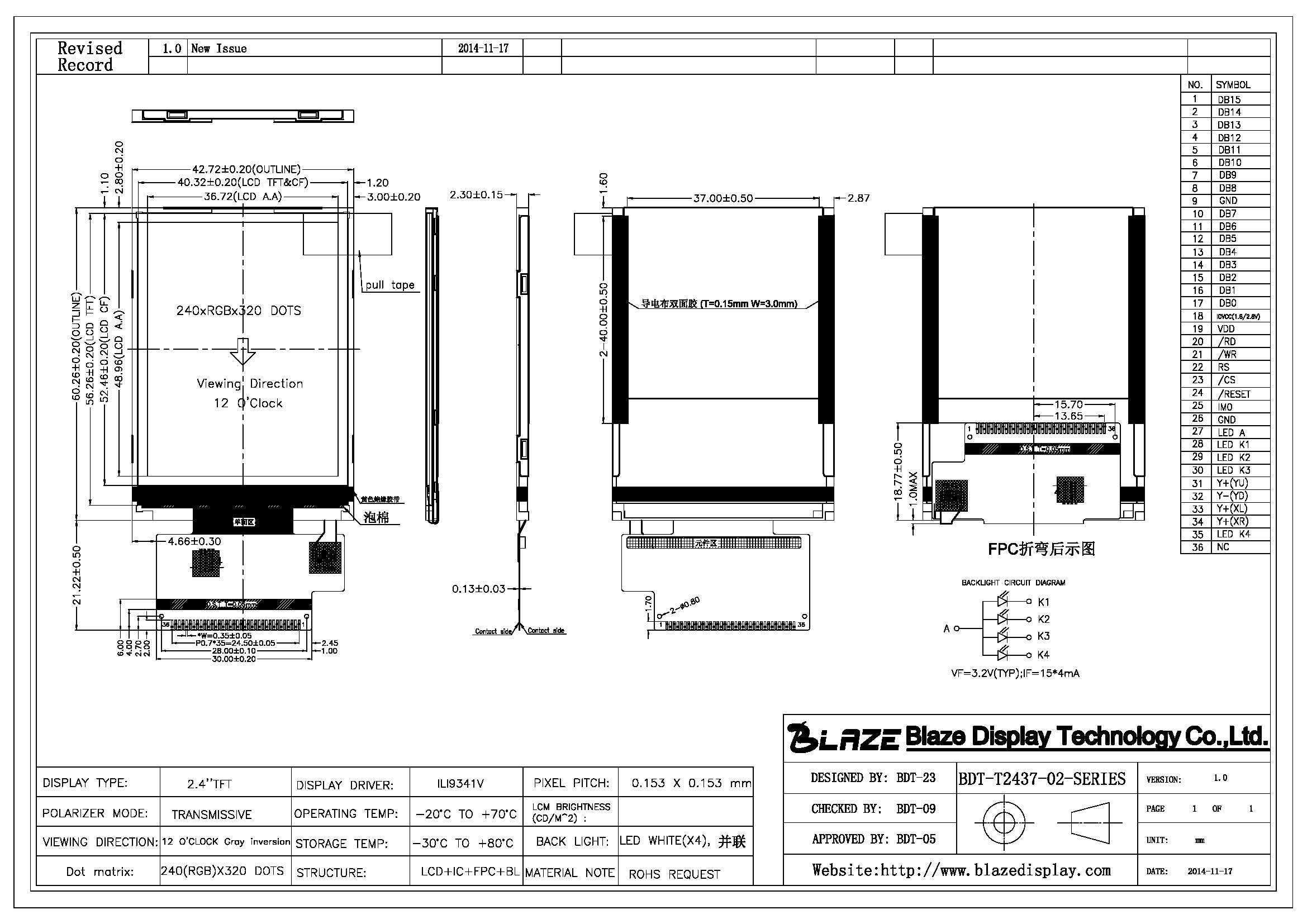

Outline size（mm）： 42.72 × 60.26 × 2.30
LCD TFT：40.32 × 56.26
Active Area： 36.72 × 48.96
Controller IC： ILI9341V.
Interface： 16 bit parallel
TP: Optional
Backlight：LED
Part Number: BDT-T2437-02
● Display Format: 240 x 320
● Size: 2.4"
● View Direction:12H
● Interface: MCU
● Built-in Controller: ILI9341V
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T2437-02 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1~8 |
DB15-DB8 |
Data Bus |
|||||||||||
|
9 |
GND |
Ground |
|||||||||||
|
10~17 |
DB7-DB0 |
Data Bus |
|||||||||||
|
18 |
IOVCC |
Digital IO Pad power supply |
|||||||||||
|
19 |
VDD |
Analog power supply |
|||||||||||
|
20 |
RD |
Read enable pin |
|||||||||||
|
21 |
WR |
Write enable pin |
|||||||||||
|
22 |
RS |
Command and Data select pin |
|||||||||||
|
23 |
CS |
Chip select pin |
|||||||||||
|
24 |
RESET |
Reset pin. |
|||||||||||
|
25 |
IM0 |
NC |
|||||||||||
|
26 |
GND |
Ground |
|||||||||||
|
27 |
LEDA |
Anode pin of backlight |
|||||||||||
|
28~30 |
LEDK1-K3 |
Cathode pin of backlight |
|||||||||||
|
31 |
YU |
Touch panel connect PIN |
|||||||||||
|
32 |
YD |
Touch panel connect PIN |
|||||||||||
|
33 |
XL |
Touch panel connect PIN |
|||||||||||
|
34 |
XR |
Touch panel connect PIN |
|||||||||||
|
35 |
LEDK4 |
Cathode pin of backlight |
|||||||||||
|
36 |
NC |
NC |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
2.4 |
inch |
|||||||||||
|
Dot Matrix |
240 × RGB × 320 (TFT) |
dots |
|||||||||||
|
Module dimension |
42.72(W) × 60.26(H) × 2.30(D) |
mm |
|||||||||||
|
Active area |
36.72 × 48.96 |
mm |
|||||||||||
|
Dot pitch |
0.153 × 0.153 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
