### Parity Bit

Blaze Display Technology Co., Ltd. | Updated: Nov 27, 2018

Errors in binary communication refers to situations where the message received differs from the message intended to be transmitted. This can occur for various reasons, such as poor signal integrity, noise, or system failures. The errors can lead to incorrect interpretations of the message and affect the accuracy and reliability of a digital signal communication. One solution to reducing binary communication errors is the use of a parity bit.

**What is Parity Bit?**

A parity bit, also referred to as parity check, is an extra bit added to a set of binary data bits for the purpose of error detection during data transmission. The parity bit is used to check if the number of 1s in a data string is even or odd, resulting in two types: even parity bit and odd parity bit.

**Binary Errors**

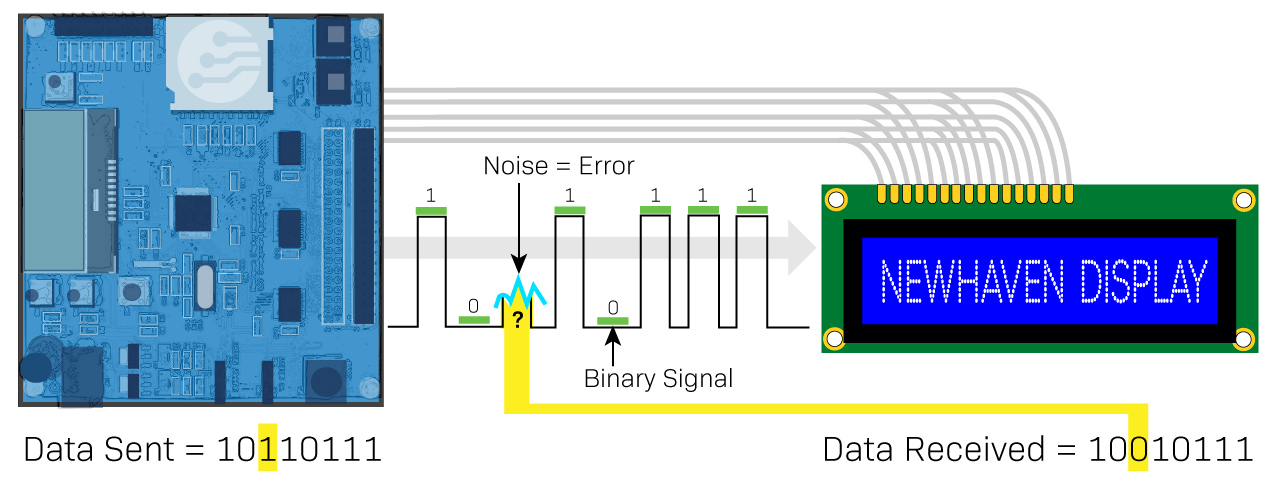

An error in binary communication occurs when a 1 unexpectedly turns into a 0 or vice versa.

**Even Parity**

In an even parity system, the parity bit is set to either 1 or 0 so that the total number of 1-bits, including the parity bit, becomes an even number.

**How to calculate even parity **

If the number of 1s in the data string is odd, the parity bit is set to 1 to ensure that the overall number of 1s, including the parity bit, is even. If the number of 1s in the data string is already even, the parity bit is set to 0.

**Odd Parity **

In an odd parity system, the parity bit is set to either 1 or 0 so that the total number of 1-bits, including the parity bit, becomes an odd number.

**How to calculate odd parity**

If the number of 1s in the data string is even, the parity bit is set to 1 to ensure that the overall number of 1s, including the parity bit, is odd. If the number of 1s in the data string is already odd, the parity bit is set to 0.

**How Parity Bit Works **

Before transmitting data, both the transmitter and receiver must agree on odd or even parity. Before sending each data packet (string of bits), the sender calculates its parity bit (0 or 1) to ensure that it matches the agreed parity (odd or even). Upon receipt, the receiver checks the received data's parity against the expected parity. If they don't match, it indicates an error, and the data can be discarded or corrected by requesting a re-transmission.

The parity bit is only used to help detect errors, but it lacks the ability to rectify any errors because it cannot identify the specific corrupted bit. Thus, the only option to fix errors is to discard the entire data string and request re-transmission from the sender.

**Parity bit position **

While there is no set rule for the position of the parity bit, it is commonly added at the end of the binary string message by convention.

**Error Detection**

Parity checking at the receiver can spot errors by comparing the received signal's parity to the expected parity. If there's a mismatch, the receiver can request a retransmission from the transmitter.

Detecting if the number of 1s in a binary data string is even or odd can be calculated by the Modulo operator. Modulo, or "mod," is a mathematical operation that finds the remainder when one integer is divided by another. The Modulo operation is represented using the symbol %.

Using Modulo, we can determine if a number is even if it can be divided by 2 with no remainder. On the other hand, if a number leaves a remainder when divided by 2, it is considered odd.

The following C program example illustrates the process of checking parity using modulo:

#include <stdio.h>

int main() {

unsigned char byte;

int num_ones = 0;

printf("Enter a byte (in decimal): ");

scanf("%hhu", &byte);

// Count the number of 1s in the byte

for (int i = 0; i < 8; i++) {

if ((byte >> i) & 1) {

num_ones++;

}

}

// Detect parity with mod 2 and print the parity type.

if (num_ones % 2 == 0) { //

printf("Even parity\n");

} else {

printf("Odd parity\n");

}

return 0;

}

The program starts by reading in a byte from the user. It then uses a loop to count the number of 1 bits in the byte. This is done by shifting the byte right by each bit position (0 through 7) and checking if the resulting bit is 1. If it is, the count of 1 bits is incremented. Finally, the program checks if the number of 1 bits is even or odd, and prints the appropriate message.

Note that the program uses an unsigned char to store the byte, which is an 8-bit integer that can hold values between 0 and 255. The %hhu format specifier is used with scanf() to read in a byte value from the user.

**How to add a parity bit **

Let's examine an example where we need to transmit the data string 1100101. First, we count the number of 1s in the data string and determine whether the count is even or odd using the mod operator with 2 as the divisor:

1100101

(1+1+0+0+1+0+1) mod 2

4 mod 2 = 0

Since 4 divided by 2 has no remainder, the result is 0, indicating that we have an even count of 1s. If we have agreed upon even parity, we append a "0" as the parity bit to the end of the message, resulting in 11001010, which can now be sent. Alternatively, if we have agreed upon odd parity, we reverse the parity bit and append a "1" instead, resulting in 11001011 as the final message that can be transmitted.

**Parity Bit Uses**

l Error detection: One of the primary uses of parity bits is to detect errors during data transmission.

l Memory storage: Parity bits are also used in computer memory systems to detect errors when data is stored in memory. When data is stored in memory, there is always a risk of errors occurring due to various factors such as electromagnetic interference, hardware faults, etc.

l RAID systems: Parity bit is also used in Redundant Array of Inexpensive Disks (RAID). RAID can also be referred to as "Redundant Array of Independent Drives." RAID systems use multiple disks to store data redundantly and protect against disk failures. They use parity for fault tolerance.

**Conclusion**

In conclusion, the parity bit is a simple but effective error detection mechanism that can help ensure storage and data transmission accuracy. While parity bits are not foolproof and can only detect some errors, they remain useful for many applications in binary data communications.
