Serial vs Parallel Communication
Blaze Display Technology Co., Ltd. | Updated: Nov 27, 2018
Communication between electronic devices is a crucial aspect of modern technology, playing an integral role in the functionality and efficiency of countless devices and systems. At the heart of this process are two core data transfer methods - serial and parallel communication.
In this article, we'll discuss both forms of communication, considering their advantages, disadvantages, and appropriate use cases.
An Insight into Data Transmission
To understand the principles of serial and parallel communication, we must first understand the fundamental concept of a bit, the smallest unit of data in an electronic circuit.
A bit, in its simplest terms, is like a single piece of digital information. You can think of it like a light switch that can only be in one of two positions: 'on' or 'off'. In the language of computers, instead of 'on' or 'off', we say that a bit can be either '1' or '0'.
All the complex information electronic devices handle, from your favorite songs and photos to the text of this article, is ultimately broken down into a long sequence of 0s and 1s and are collectively referred to as 'bits'.

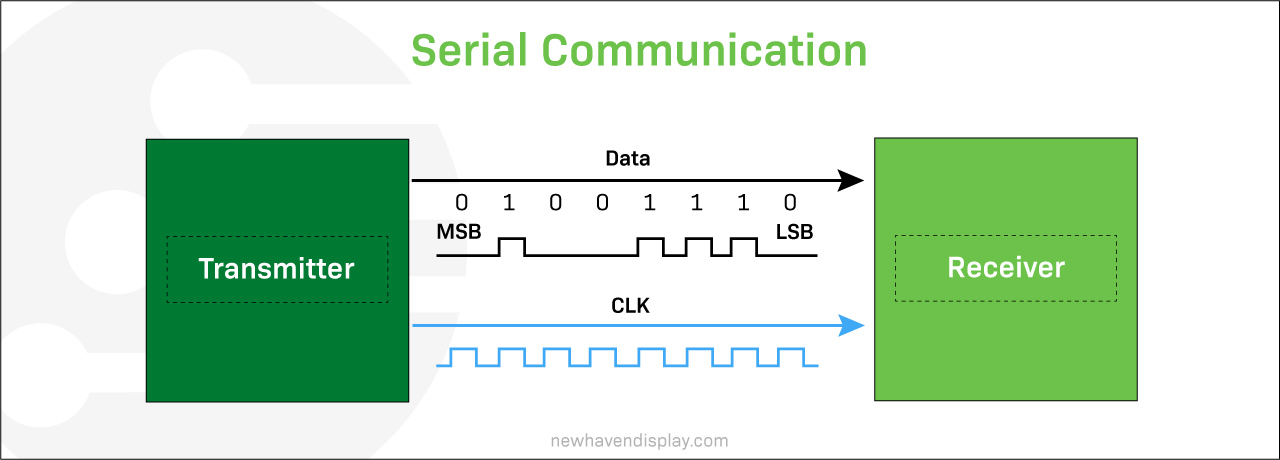

In serial communication, data transmission occurs bit by bit on a single communication line or channel. This process means that data bits are sent one after the other in a sequence or series (hence the term 'serial'), with the receiving device collecting and reassembling these bits into a complete message.
In simple terms, serial data transmission is like a single-lane road where cars can only travel one after the other, not side by side. Here is a simple breakdown of how serial data is transmitted:
1. Start of communication: The device sending the data, called the transmitter, sends a start bit to the device receiving the data, known as the receiver. The start bit is like a heads-up, signaling, "Hey, I'm about to send some data."
2. Data transmission: Next, the transmitter sends the data bit by bit in a specific order. It's like sending a long message, one letter at a time.
3. End of communication: When all the data bits have been sent, the transmitter sends a stop bit, saying, "That's it, I've sent everything I had to send."
4. Error checking (optional): The receiver then checks if it has received the data correctly. This is done through a process known as parity checking. If the data isn't correct, the receiver can ask the transmitter to resend the data.
The telegraph was one of the first devices for long-distance serial communication, using a single wire to transmit data. Serial communication protocols and standards began to develop in the 1960s. These protocols, such as RS-232, SPI, I²C, RS485, USB, and MIPI, are widely used in electronic circuits, LCDs, OLEDs, computer systems, embedded systems, and telecommunications.
Serial Communication Advantages
Serial communication requires fewer lines or wires than parallel communication, which leads to lower implementation costs, less complex hardware, and simpler data transfer processes over long distances, making it the preferred choice for telecommunication networks.
Serial Communication Disadvantages
Serial communication can be slower than parallel communication. It can only transmit a certain amount of data per unit of time, which limits bandwidth. Serial communication has a higher processing overhead because the data has to be organized, synchronized, and packaged before sending, and once it reaches the receiver, it needs to be decoded.

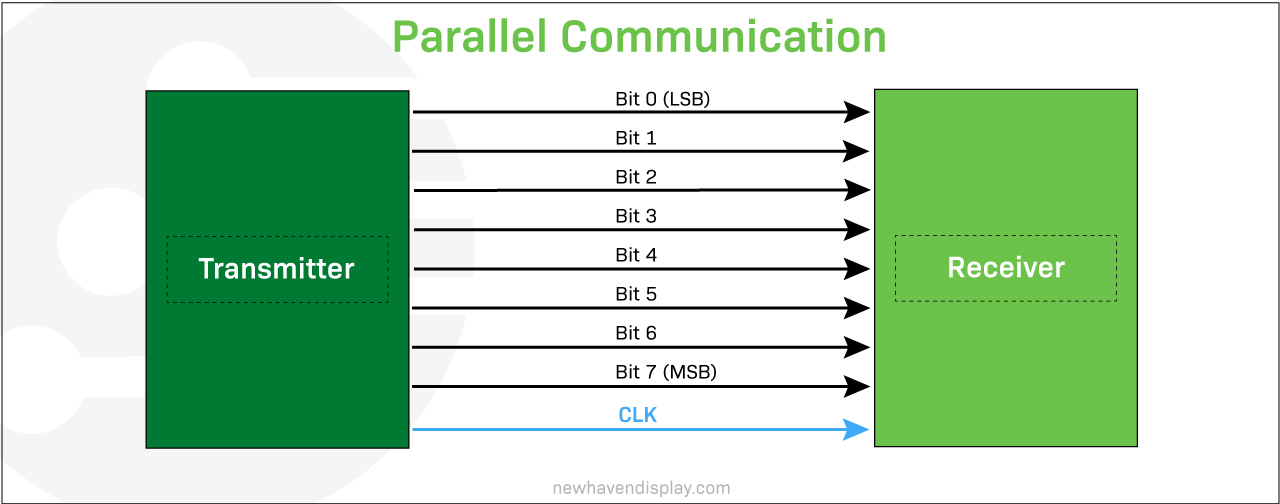

Parallel communication is a method of transmitting data in which multiple bits are sent simultaneously over multiple channels or cables. These bits are generally sent in data groups of 8 bits, known as bytes, in a single clock pulse. This means each bit is transmitted over a dedicated cable. This technique is like a multi-lane highway, with each 'bit' having its own lane, allowing for simultaneous data transmission.
Here is a simple breakdown of how parallel data is transmitted:
1. Start of communication: The transmitter signals the receiver about data transmission readiness.
2. Data transmission: The data is divided into multiple bit groups, and the transmitter sends all the bits simultaneously over separate communication lines or cables.
3. Data reception: The receiver gets all the data streams and arranges them in the correct order to reconstruct the original data.
4. End of communication: Once all parallel bits are received, and data is reconstructed, the communication is complete.
5. Error checking (optional): Some systems may use error-checking mechanisms to verify data accuracy.
Parallel communication is typically faster than serial communication, as it can transmit more data in the same amount of time. However, it is also more complex and requires more hardware.
Parallel communication is often used in applications where high data rates are required, such as in printers, scanners, and external hard drives. It is also used in some internal computer buses, such as the PCI bus.
Parallel Communication Advantages
Parallel communication offers fast data transfer rates, making it optimal for high data rate demands like printers, scanners, and external drives. Over short distances, parallel communication is less prone to errors and simplifies data synchronization because it transmits multiple bits simultaneously. This is a crucial aspect of digital audio and video applications.
Parallel Communication Disadvantages
Parallel communication requires multiple communication channels, which increases cost, size, and data processing operations. Over longer distances, parallel communication can suffer from 'skew' as signals on different wires can arrive at different times. Because parallel communication sends data over multiple lines in close proximity, there is a chance of crosstalk which can cause errors.
Serial vs Parallel

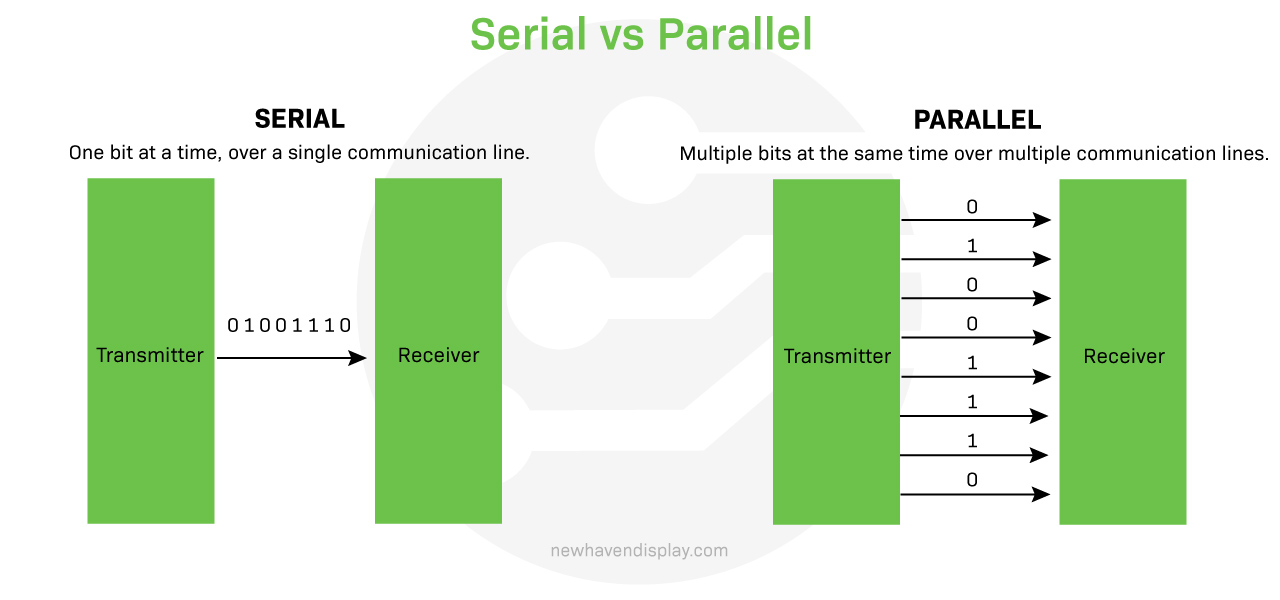

In a nutshell, serial and parallel communication differ in the way they transfer data - serial communication sends data bit by bit over a single channel, while parallel communication sends multiple bits at the same time over multiple channels.
Serial communication, characterized by its sequential transmission of bits, offers benefits in terms of simplicity, reliability, and cost-effectiveness, especially over longer distances. The slower speeds, however, may be a drawback in applications demanding rapid data transfer.
On the other hand, parallel communication provides the advantage of higher data transfer rates by transmitting multiple bits simultaneously. This method is well-suited for short-distance applications where speed is essential. Yet, it can suffer from increased complexity, synchronization challenges, and potential interference between parallel channels.
The choice of serial or parallel communication depends on the application's specific needs and limitations. Engineers and designers must consider factors such as data speed, distance, hardware constraints, and budget when deciding on the appropriate communication method.
