BDT-T7050-01
Model No. BDT-T7050-01

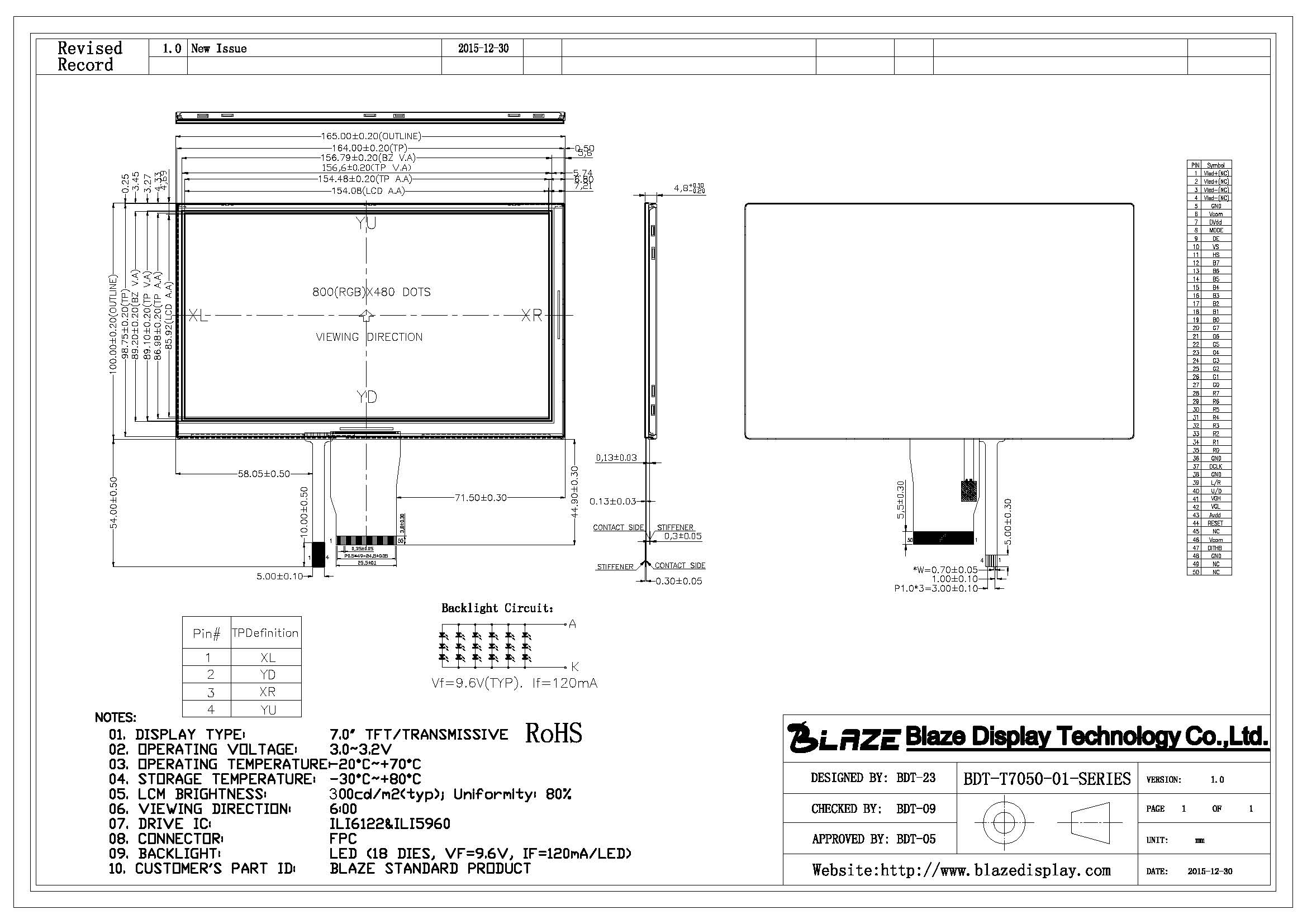

Outline size（mm）： 165.00 × 100.00 × 4.80
Viewing Area：156.79 × 89.20
Active Area： 154.08 × 85.92
Controller IC： ILI6122 & ILI5960
Interface：RGB
TP: Optional
Backlight：LED
Part Number: BDT-T7050-01
● Display Format: 800 x 480
● Size: 7.0"
● View Direction:6H
● Interface: MCU
● Built-in Controller: ILI6122 & ILI5960
● Control-Board: No
● Brightness(cd/m²): 300
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T7050-01 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1~2 |
LED-A |
Power for LED backlight anode |
|||||||||||
|
3~4 |
LED-K |
Power for LED backlight cathode |
|||||||||||
|
5 |
GND |
Power ground |
|||||||||||
|
6 |
VCOM |
VCOM output |
|||||||||||
|
7 |
DVDD |
Power supply for digital block. |
|||||||||||
|
8 |
MODE |
DE / SYNC mode select. |
|||||||||||
|
9 |
DE |
Input data enable control. |
|||||||||||
|
10 |
VS |
Vertical sync signal |
|||||||||||
|
11 |
HS |
Horizontal sync signal |
|||||||||||
|
12~19 |
B7~B0 |
Blue data |
|||||||||||
|
20~27 |
G7~G0 |
Green data |
|||||||||||
|
28~35 |
R7~R0 |
Red data |
|||||||||||
|
36 |
GND |
Power ground |
|||||||||||
|
37 |
DCLK |
Clock for input data |
|||||||||||
|
38 |
GND |
Power ground |
|||||||||||
|
39 |
L/R |
Source shift direction control. |
|||||||||||
|
40 |
U/D |
Gate scan direction control |
|||||||||||
|
41 |
VDDG(VGH) |
Power supply for gate drive output high |
|||||||||||
|
42 |
VEEG（VGL） |
Power supply for gate drive output low |
|||||||||||
|
43 |
AVDD |
Power supply for analog block. Global reset |
|||||||||||
|
44 |
RSTB |
Hardware global reset. Low active |
|||||||||||
|
45 |
NC |
NC |
|||||||||||
|
46 |
VCOM |
VCOM output |
|||||||||||
|
47 |
DITH |
Dithering function enable control. |
|||||||||||
|
48 |
GND |
Power ground |
|||||||||||
|
49~50 |
NC |
NC |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
7.0
|
inch |
|||||||||||
|
Dot Matrix |
800 × RGB × 480 (TFT) |
dots |
|||||||||||
|
Module dimension |
165.00(W) × 100.00(H) × 4.80(D) |
mm |
|||||||||||
|
Active area |
154.08 × 85.92 |
mm |
|||||||||||
|
Dot pitch |
|
mm |
|||||||||||
