Графический ЖК Индикатор BGB240128-03A

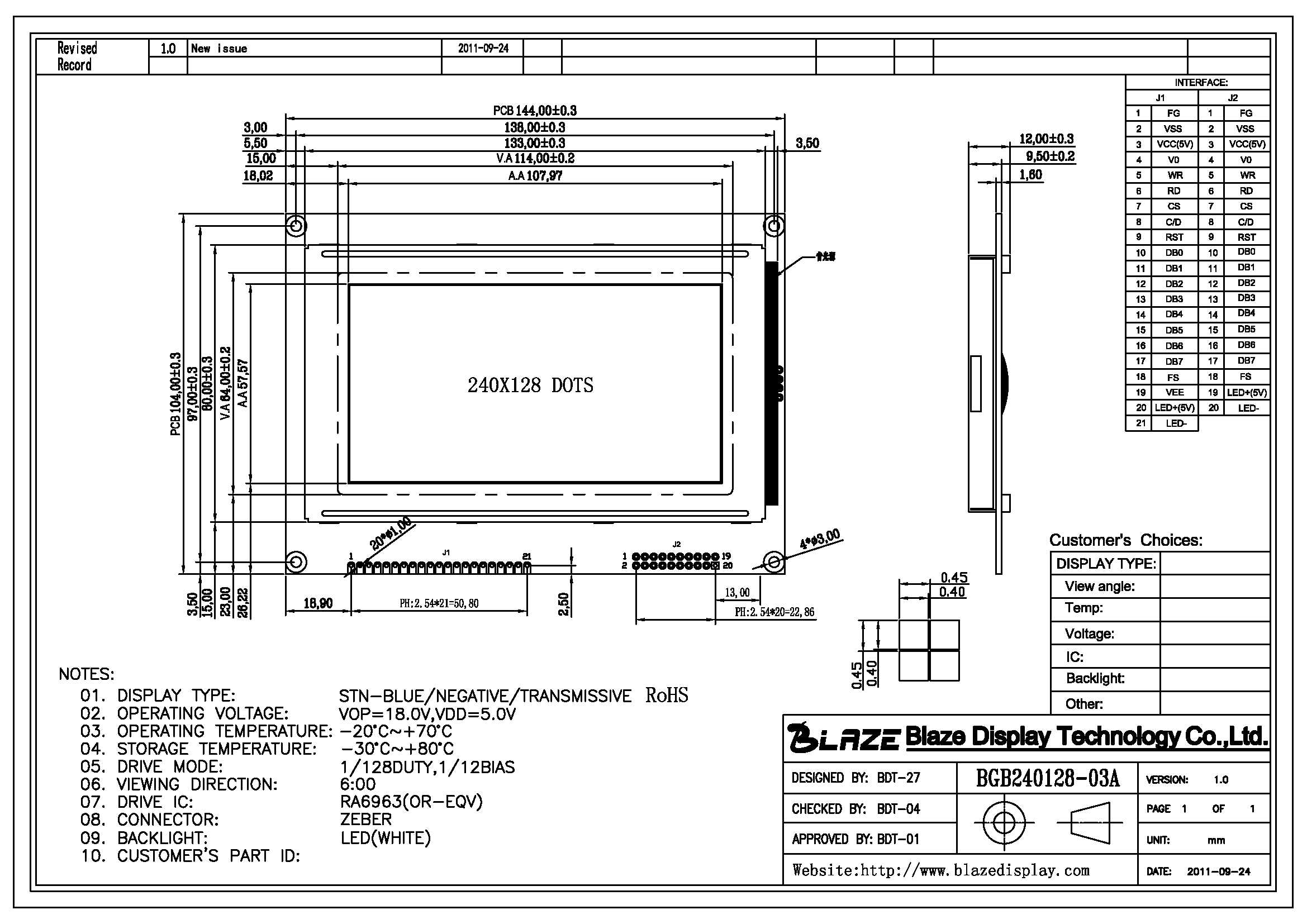

Model No. BGB240128-03A
Outline size（mm）： 144.00 × 104.00 × 12.00
Viewing Area：114.00 × 64.00
Active Area： 107.97 × 57.57
Controller IC： RA6963 or Eqv.
Interface： 8080 Parallel
Remarks： 1×21/2x10PIN
Backlight：LED
Part Number: BGB240128-03A
● Character LCD 240 x 128 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA6963 or Equivalent)
● +3.3V / +5.0V power supply
● 1/128 duty, 1/12bias
● Viewing Direction: 6H / 12H
● Interface: 8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB240128-03A manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J1) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VCC(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CS |
Enable signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
RST |
Controller reset signal, Active Low |
|
|
10~17 |
DB0~DB7 |
Data bus line |
|
|
18 |
FS |
Selection of font; H : 6 * 8 , L : 8 * 8 |
|
|
19 |
VEE |
Negative Voltage Output |
|
|
20 |
LED-(5V) |
Power supply for backlight (+5.0V) |
|
|
21 |
LED- |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Interface Pin Function(J2) |
|
|
|
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VCC(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CS |
Chip select signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
RST |
Controller reset signal, Active Low |
|
|
10~17 |
DB0~DB7 |
Data bus line |
|
|
18 |
FS |
Selection of font; H: 6 * 8, L: 8 * 8 |
|
|
19 |
LED-(5V) |
Power supply for backlight (+5.0V) |
|
|
20 |
