Графический ЖК Индикатор BGB320240-06A
Model No. BGB320240-06A

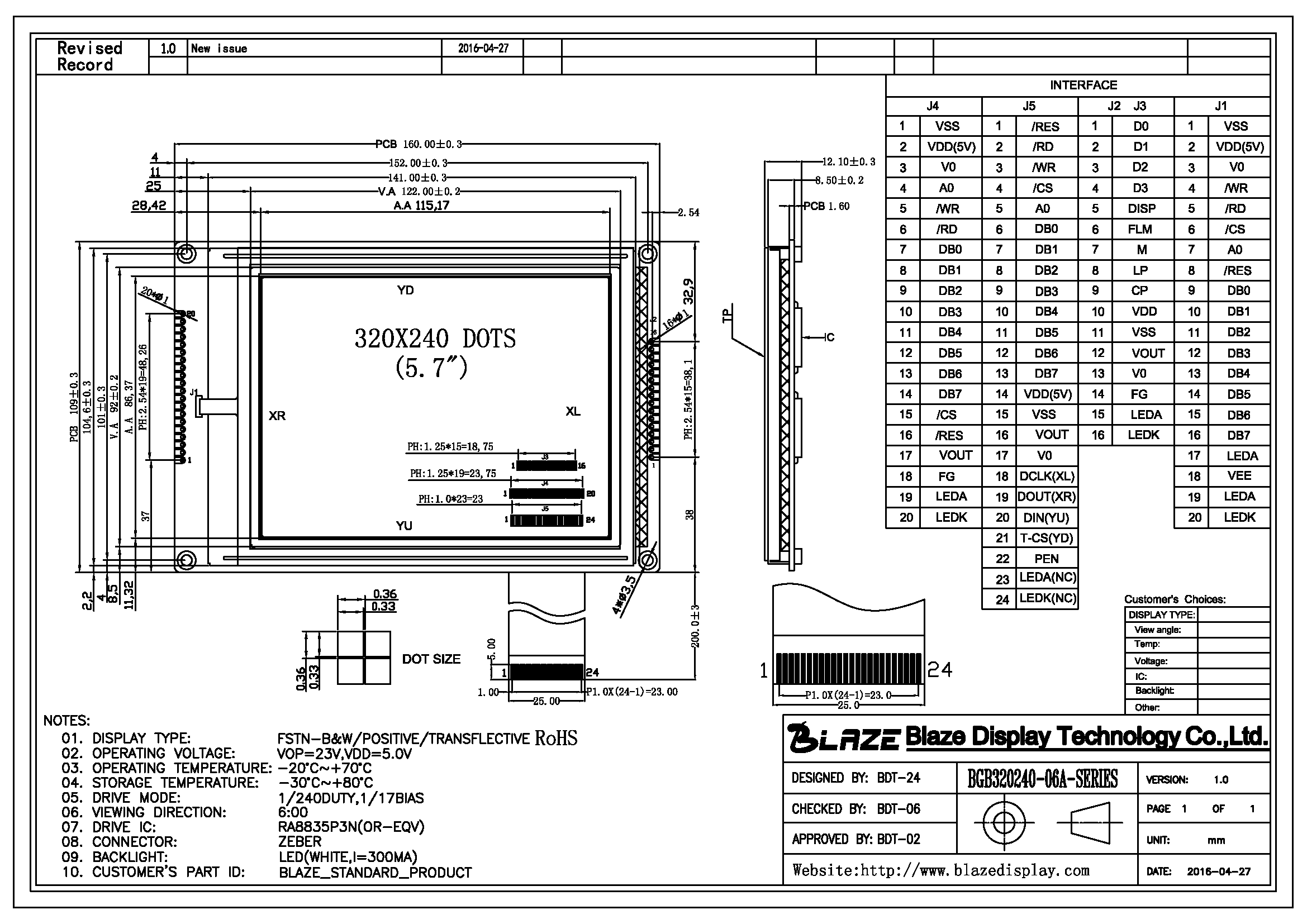

Outline size（mm）：160.00 × 109.00 × 12.10
Viewing Area：122.00 × 92.00
Active Area： 115.17 × 86.37
Controller IC： RA8835 or Eqv.
Interface： 6800/8080 8-bit Parallel
Remarks： 1×20/1x16/1x24PIN
Backlight：LED
Part Number: BGB320240-06A
● Graphic LCD 320 x 240 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA8835 or Equivalent)
● +3.3V / +5.0V power supply
● 1/240 duty , 1/17bias
● Viewing Direction: 6H / 12H
● Interface: 6800/8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB320240-06A manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J1) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
/WR |
Data write. Write data into LCD Controller |
|
|
5 |
/RD |
Data read. Read data from LCD Controller |
|
|
6 |
/CS |
Chip select input pins |
|
|
7 |
A0 |
Data/ Instruction select signal |
|
|
8 |
/RES |
Controller reset signal, Active Low |
|
|
9-16 |
DB0~DB7 |
Data bus line |
|
|
17 |
LEDA |
Power supply for backlight (+5.0V) |
|
|
18 |
VEE |
Negative Voltage Output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Interface Pin Function(J5) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
/RES |
Controller reset signal, Active Low |
|
|
2 |
/RD |
Data read. Read data from LCD Controller |
|
|
3 |
/WR |
Data write. Write data into LCD Controller |
|
|
4 |
/CS |
Chip select input pins |
|
|
5 |
A0 |
Data/ Instruction select signal |
|
|
6-13 |
DB0~DB7 |
Data bus line |
|
|
14 |
VDD |
Power supply for logic(+5.0V) |
|
|
15 |
VSS |
Ground(0V) |
|
|
16 |
VOUT |
Negative Voltage Output |
|
|
17 |
V0 |
Contrast Adjustment |
|
|
18 |
DCLK(XL) |
TP serial clock input/TP Left signal in X Axis |
|
|
19 |
DOUT(XR) |
TP serial data output/TP Right signal in X Axis |
|
|
20 |
DIN(YU) |
TP serial data in/TP Upper signal in Y Axis |
|
|
21 |
T-CS(YD) |
TP Chip select/ TP Lower signal in Y Axis |
|
|
22 |
PEN |
TP Pen interrupt |
|
|
23 |
LED-A |
| |
