BDT-T4340-04
Model No. BDT-T4340-04

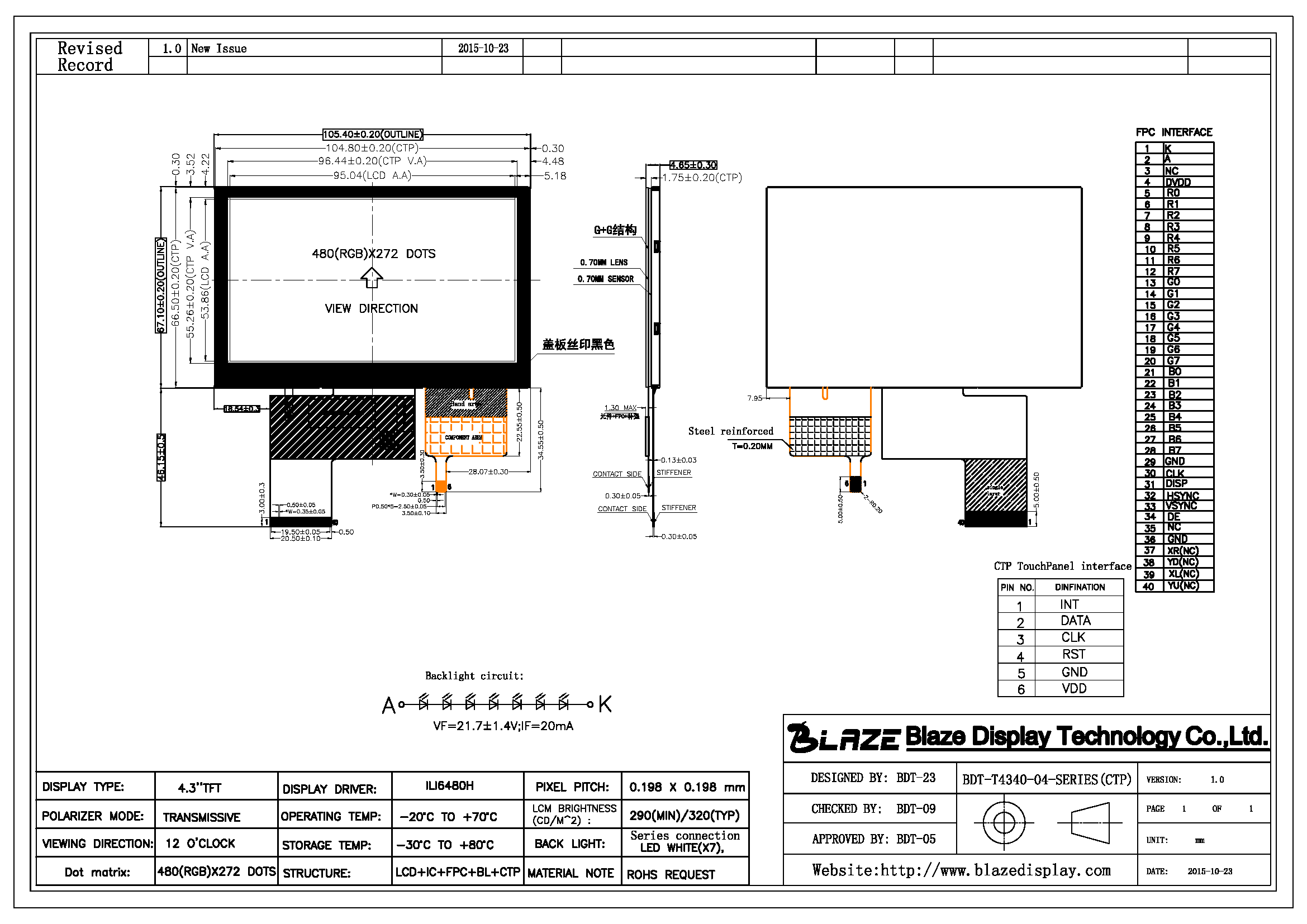

Outline size（mm）： 105.40 x 67.10 x 4.60
Active Area： 95.04 × 53.86
Controller IC： ILI6480H.
Interface： 24BIT RGB
TP: CTP
Backlight：LED
Part Number: BDT-T4340-04
● Display Format: 480 x 272
● Size: 4.3"
● View Direction:12H
● Interface: 24BIT RGB
● Built-in Controller: ILI6480H.
● Control-Board: No
● Brightness(cd/m²): 350
● Frame Through Hole: No
● Touch Screen: CTP
Blaze Display is one of the best China Color TFT LCD Display BDT-T4340-04 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
K |
Power for LED backlight cathode |
|||||||||||
|
2 |
A |
Power for LED backlight anode |
|||||||||||
|
3 |
NC |
NC |
|||||||||||
|
4 |
DVDD |
Power voltage |
|||||||||||
|
5~12 |
R0~R7 |
Red data |
|||||||||||
|
13~20 |
G0~G7 |
Green data |
|||||||||||
|
21~28 |
B0~B7 |
Blue data |
|||||||||||
|
29 |
GND |
Power ground |
|||||||||||
|
30 |
DCLK |
Pixel clock |
|||||||||||
|
31 |
DISP |
Display on/off |
|||||||||||
|
32 |
HSYNC |
Horizontal sync signal |
|||||||||||
|
33 |
VSYNC |
Vertical sync signal |
|||||||||||
|
34 |
DE |
Data enable |
|||||||||||
|
35 |
NC |
No connect |
|||||||||||
|
36 |
GND |
Power ground |
|||||||||||
|
37 |
NC |
NC |
|||||||||||
|
38 |
NC |
NC |
|||||||||||
|
39 |
NC |
NC |
|||||||||||
|
40 |
NC |
NC |
|||||||||||
|
1 |
K |
Power for LED backlight cathode |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
4.3 |
inch |
|||||||||||
|
Dot Matrix |
480 × RGB × 272(TFT) |
dots |
|||||||||||
|
Module dimension |
105.40(W) × 67.10(H) × 4.60(D) |
mm |
|||||||||||
|
Active area |
95.04 × 53.86 |
mm |
|||||||||||
|
Dot pitch |
0.198 × 0.198 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
CTP |
||||||||||||
|
Surface&l
| |||||||||||||
