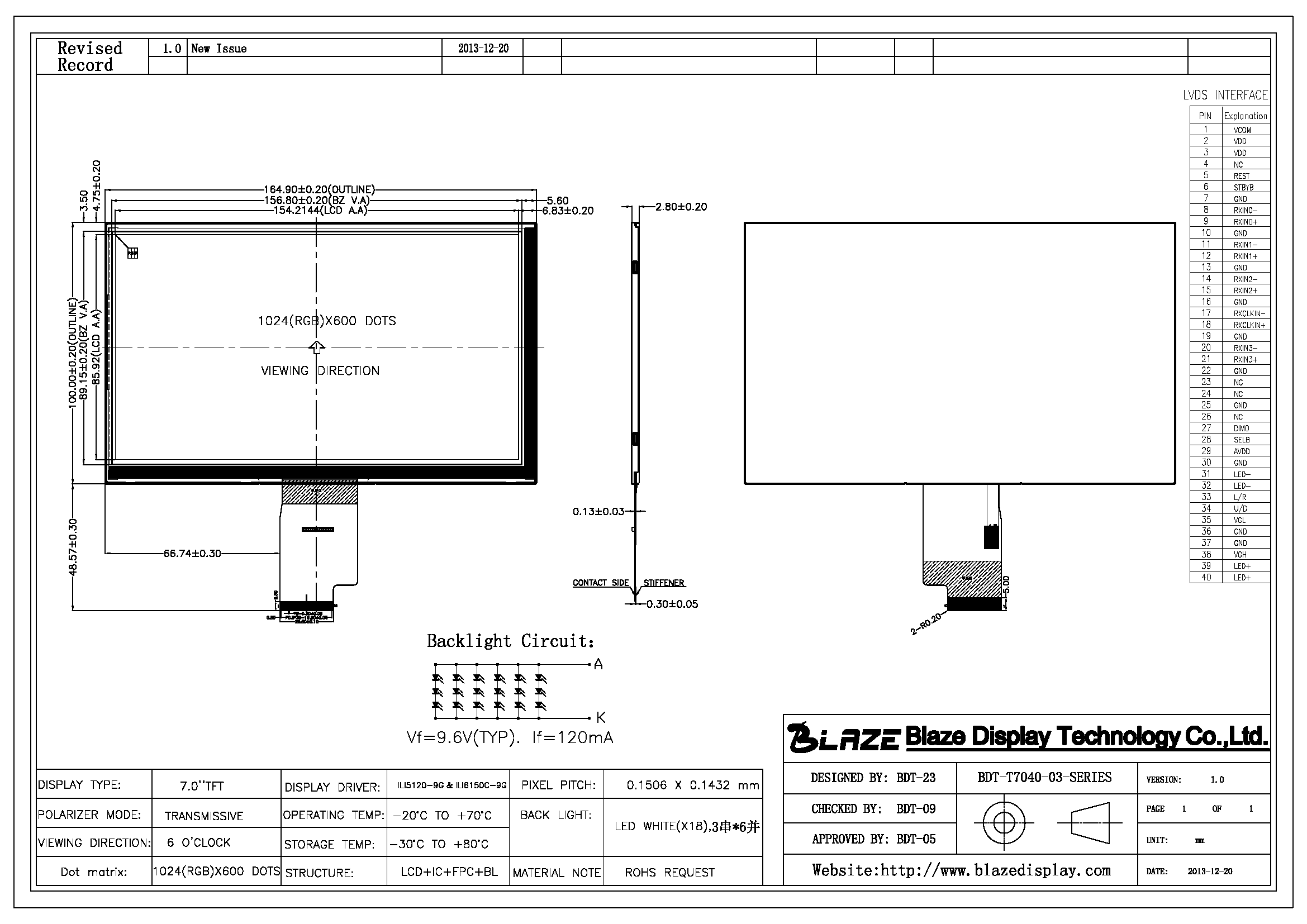

Interface

NO

Symbol

Function

1

VCOM

Common voltage

2~3

VDD

Digital power

4

NC

Not connect

5

RESET

Global reset pin. Active low to enter reset state.

Suggest to connecting with an RC reset circuit for stability.

     Normally pull high. (R=10KΩ，C=0.1μF)

6

STBYB

Standby mode, normally pull high

STBYB=”1”, normal operation

STBYB=”0”,timing control, source driver will turn off, all output are high-Z

7

GND

Ground

8

RXIN0-

Negative LVDS differential data inputs

9

RXIN0+

Positive LVDS differential data inputs

10

GND

Ground

11

RXIN1-

Negative LVDS differential data inputs

12

RXIN1+

Positive LVDS differential data inputs

13

GND

Ground

14

RXIN2-

Negative LVDS differential data inputs

15

RXIN2+

Positive LVDS differential data inputs

16

GND

Ground

17

RXCLKIN-

Negative LVDS differential clock inputs

18

RXCLKIN+

Positive LVDS differential clock inputs

19

GND

Ground

20

RXIN3-

Negative LVDS differential data inputs

21

RXIN3+

Positive LVDS differential data inputs

22

GND

Ground

23

NC

No connect

24

NC

No connect

25

GND

Ground

26

NC

No connect

27

DIMO

Backlight dimmer signal for external controller.

28

SELB

6bit/8bit mode select

29

AVDD

Power for Analog Circuit

30

GND

Ground

31~32

LED-

LED Cathode

33

L/R

Horizontal inversion

34

U/D

Vertical inversion

35

VGL

Negative power for TFT

36~37
