Interface

NO

Symbol

Function

1~2

LED-A

Power for LED backlight anode

3~4

LED-K

Power for LED backlight cathode

5

GND

Power ground

6

VCOM

Common voltage

7

DVDD

Power supply for digital

8

MODE

DE/SYNC Mode Select. Normally Pull High

H: DE mode. L: HSD/VSD mode

9

DE

Input data enable control.

10

VSD

Vertical sync signal

11

HSD

Horizontal sync signal

12~19

B7~B0

Blue data

20~27

G7~G0

Green data

28~35

R7~R0

Red data

36

GND

Power ground

37

DCLK

Clock for input data

38

GND

Power ground

39

SHLR

Source shift direction control.

40

UPDN

Gate scan direction control

41

VGH

Positive Power for TFT

42

VGL

Negative Power for TFT

43

AVDD

Analog Power

44

RSTB

Global reset pin. Active low to enter reset state.

Suggest to connecting with an RC reset circuit for stability.

Normally pull high. (R=10KΩ，C=1μF)

45

NC

NC

46

VCOM

Common Voltage

47

DITH

Dithering setting

DITH=”H” 6bit resolution(last 2 bit of input data truncated)

                    DITH=”L” 8bit resolution(default setting)

48

GND

Power ground

49~50

NC

NC

General Specifications

Item

Dimension

Unit

Size

7.0

inch

Dot Matrix

1024 × RGB × 600 (TFT)

dots

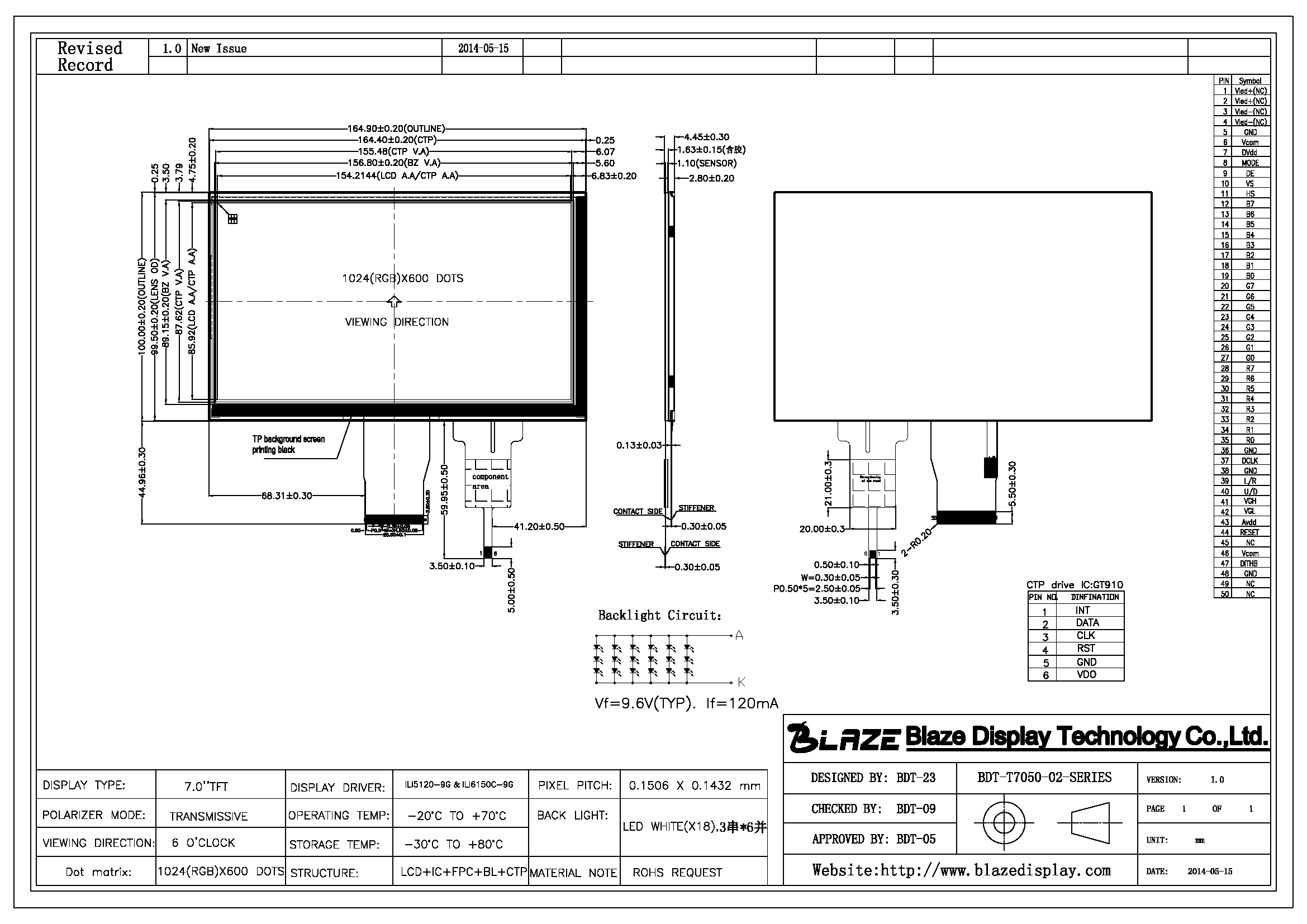

Module dimension

164.90(W) × 100.00(H) × 4.45(D)

mm
