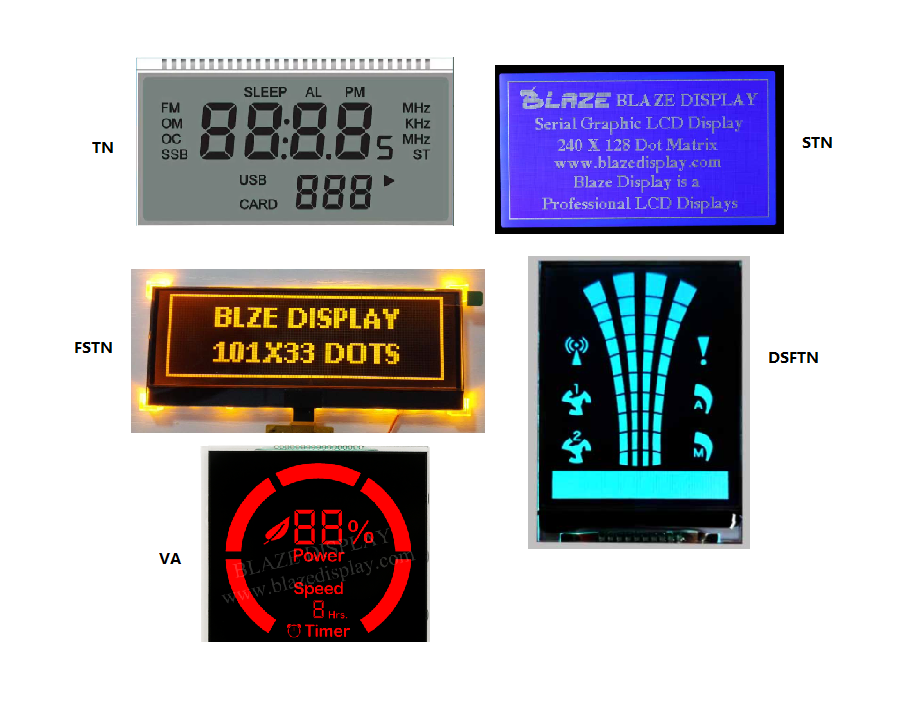

The Difference Between TN, STN, FSTN, DSTN, VA LCD Screens
Blaze Display Technology Co., Ltd. | Updated: Nov 27, 2018
TN lcd screen, is Twisted Nematic. The twisted orientation deflection of liquid crystal molecules 90 °TN products belong to the category of LCM products, the main advantages are low power consumption and rich TN,STN,FSTN LCD and LCD module, COB, COG, TAB, CSTN, of product display data. TFT LCD module products are suitable for MP3, mobile phones, industrial display modules, handheld video games, calculators, calendars, electronic watches, electronic pets, BP machines, electronic weighing, car clocks, telephones, air conditioners, multimeter, electronic notepad, car LCD remote control, radio, electronic instruments, intercom, CD, VCD and car audio. Home appliances, industrial instrument display, such as digital multimeter, electronic dictionary, mobile phone, calculator, fax machine, mp3, ipod, handheld computer.
STN (Super Twisted Nematic) lcd screen uses an electric field to change the arrangement of liquid crystal molecules that are twisted above 180 degrees to change the optical rotation state. The applied electric field changes the electric field by progressive scanning. In the process of repeatedly changing the voltage of the electric field, the recovery process of each point is slow, resulting in afterglow. Its advantage is that it consumes less power and has the greatest advantage of power saving.
Ordinary STN lcd screen that is, the liquid crystal rotates 180 degrees to 270 degrees in the LCD screen, and the LCD screen pastes the ordinary polarizer up and down. Because of the dispersion, the background color of the LCD screen will show a certain color, and the common ones are yellowish green or blue, that is, the yellow-green mode or blue mode.
FSTN (Film+STN) lcd screen, in order to improve the background color problem of ordinary STN, a compensation film is added to the polarizer to eliminate dispersion and realize black-and-white display.
DSTN lcd screen, is called double-layer STN. One layer is used as the driving layer and the other as the compensation layer, which belongs to the black and whitening technology of STN. Compared with FSTN, the contrast is higher, and the dispersion can be compensated with the temperature to achieve a wide temperature range of high contrast.
VA lcd screen is now a large number of high-end liquid crystal panel types, belonging to a wide range of angle of view panel. Compared with the TN panel, the 8bit panel can provide 16.7m color and large visual angle is the high-end capital of this kind of panel positioning, but the price is also more expensive than the TN panel. The VA panel can be divided into the MVA panel dominated by Fujitsu and the PVA panel developed by Samsung, in which the latter is the inheritance and improvement of the former. The front (face) contrast of the VA panel is the highest, but the uniformity of the screen is not good enough, and color drift often occurs. Sharp text is its killer mace, black and white contrast is quite high.
