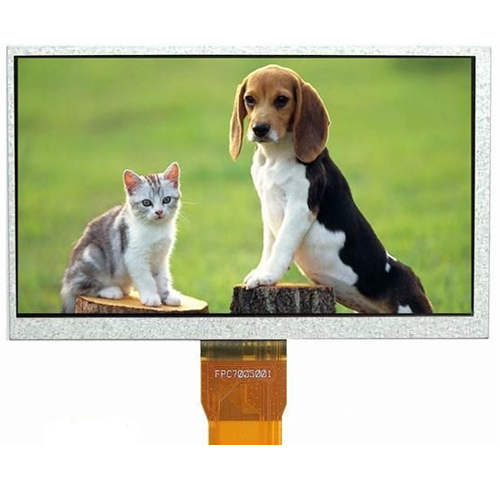

BDT-T7040-03
Model No. BDT-T7040-03

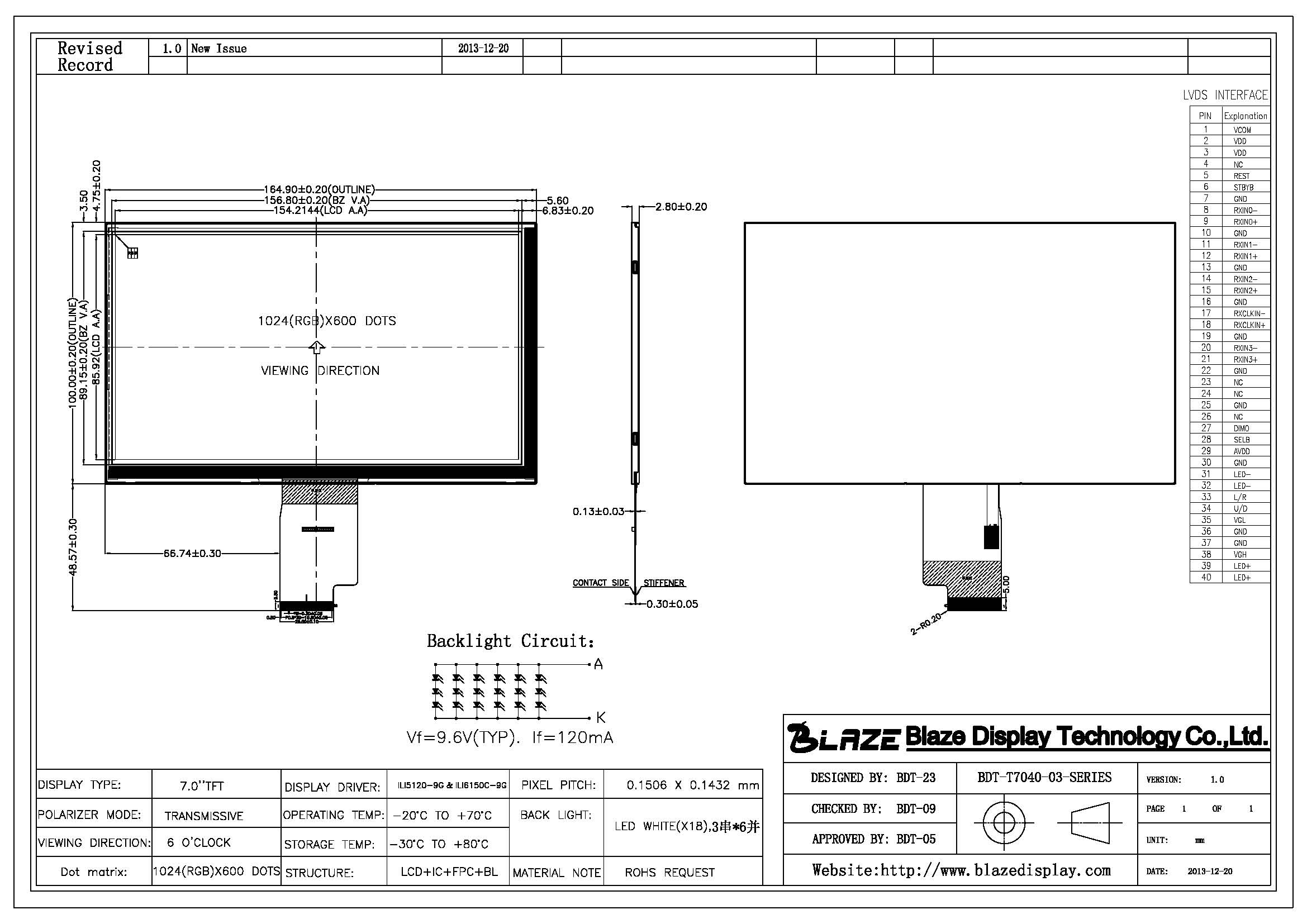

Outline size（mm）： 164.90 × 100.00 × 2.8
LCD TFT：162.50 × 95.70
Active Area： 154.2144 × 85.92
Controller IC： ILI5120-9G & ILI6150C-9G
Interface：LVDS
TP: Optional
Backlight：LED
Part Number: BDT-T7040-03
● Display Format: 1024 x 600
● Size: 7.0"
● View Direction:6H
● Interface: MCU
● Built-in Controller: ILI5120-9G & ILI6150C-9G
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T7040-03 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
VCOM |
Common voltage |
|||||||||||
|
2~3 |
VDD |
Digital power |
|||||||||||
|
4 |
NC |
Not connect |
|||||||||||
|
5 |
RESET |
Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ，C=0.1μF) |
|||||||||||
|
6 |
STBYB |
Standby mode, normally pull high STBYB=”1”, normal operation STBYB=”0”,timing control, source driver will turn off, all output are high-Z |
|||||||||||
|
7 |
GND |
Ground |
|||||||||||
|
8 |
RXIN0- |
Negative LVDS differential data inputs |
|||||||||||
|
9 |
RXIN0+ |
Positive LVDS differential data inputs |
|||||||||||
|
10 |
GND |
Ground |
|||||||||||
|
11 |
RXIN1- |
Negative LVDS differential data inputs |
|||||||||||
|
12 |
RXIN1+ |
Positive LVDS differential data inputs |
|||||||||||
|
13 |
GND |
Ground |
|||||||||||
|
14 |
RXIN2- |
Negative LVDS differential data inputs |
|||||||||||
|
15 |
RXIN2+ |
Positive LVDS differential data inputs |
|||||||||||
|
16 |
GND |
Ground |
|||||||||||
|
17 |
RXCLKIN- |
Negative LVDS differential clock inputs |
|||||||||||
|
18 |
RXCLKIN+ |
Positive LVDS differential clock inputs |
|||||||||||
|
19 |
GND |
Ground |
|||||||||||
|
20 |
RXIN3- |
Negative LVDS differential data inputs |
|||||||||||
|
21 |
RXIN3+ |
Positive LVDS differential data inputs |
|||||||||||
|
22 |
GND |
Ground |
|||||||||||
|
23 |
NC |
No connect |
|||||||||||
|
24 |
NC |
No connect |
|||||||||||
|
25 |
GND |
Ground |
|||||||||||
|
26 |
NC |
No connect |
|||||||||||
|
27 |
DIMO |
Backlight dimmer signal for external controller. |
|||||||||||
|
28 |
SELB |
6bit/8bit mode select |
|||||||||||
|
29 |
AVDD |
Power for Analog Circuit |
|||||||||||
|
30 |
GND |
Ground |
|||||||||||
|
31~32 |
LED- |
LED Cathode |
|||||||||||
|
33 |
L/R |
Horizontal inversion |
|||||||||||
|
34 |
U/D |
Vertical inversion |
|||||||||||
|
35 |
VGL |
Negative power for TFT |
|||||||||||
|
36~37 |
CABCEN[1:0] |
CABC H/W enable pin.Normally pull low. When CABC_EN=00，CABC OFF.(Default mode) Whe
| |||||||||||
