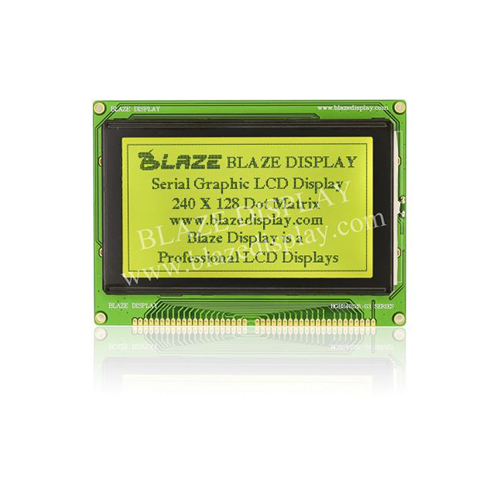

BGB240128-03A
Model No. BGB240128-03A
Taille du contour (mm): 144.00 × 104.00 × 12.00
Zone d'observation ： 114.00 × 64.00
Surface active ： 107.97 × 57.57
Contrôleur IC: RA6963 ou Eqv.
Interface: 8080 parallèle
Remarques: 1 × 21 / 2x10PIN
Rétro-éclairage: LED
Numéro de pièce: BGB240128-03A
● LCD de caractères 240 x 128 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré ((RA6963 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/128 devoir, 1 / 12bias
● Direction de visée: 6H / 12H
● Interface: parallèle 8080 8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J1) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VCC(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CS |
Enable signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
RST |
Controller reset signal, Active Low |
|
|
10~17 |
DB0~DB7 |
Data bus line |
|
|
18 |
FS |
Selection of font; H : 6 * 8 , L : 8 * 8 |
|
|
19 |
VEE |
Negative Voltage Output |
|
|
20 |
LED-(5V) |
Power supply for backlight (+5.0V) |
|
|
21 |
LED- |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Interface Pin Function(J2) |
|
|
|
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VCC(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CS |
Chip select signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
RST |
Controller reset signal, Active Low |
|
|
10~17 |
DB0~DB7 |
Data bus line |
|
|
18 |
FS |
Selection of font; H: 6 * 8, L: 8 * 8 |
|
|
19 |
LED-(5V) |
Power supply for backlight (+5.0V) |
|
|
20 |
LED- |
Ground for backlight(0V) |
|
|
|
|||
|
)Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
144.0 x 104.0 |
mm |
|
|
Viewing Area |
114.0 x 64.0 |
mm |
|
|
Mounting Hole |
138.0 x97.0 |
mm |
|
|
Dots Pitch |
0.45 x 0.45 |
mm |
|
|
Dots Size |
0.40 x 0.40 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
|||
