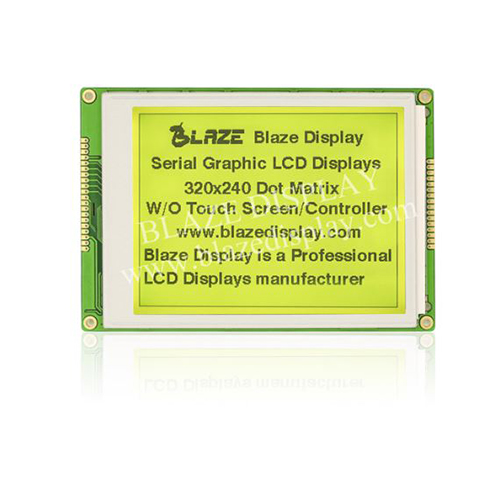

BGB320240-06A
Model No. BGB320240-06A
Taille du contour （mm）： 160.00 × 109.00 × 12.10
Zone d'affichage ： 122.00 × 92.00
Zone active ： 115.17 × 86.37
Contrôleur IC: RA8835 ou Eqv.
Interface: 6800/8080 parallèle 8 bits
Remarques: 1 × 20 / 1x16 / 1x24PIN
Rétro-éclairage: LED
Numéro de pièce: BGB320240-06A
● LCD graphique 320 x 240 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré ((RA8835 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/240 devoir, 1 / 17bias
● Direction de visée: 6H / 12H
● Interface: parallèle 6800/8080 8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J1) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
/WR |
Data write. Write data into LCD Controller |
|
|
5 |
/RD |
Data read. Read data from LCD Controller |
|
|
6 |
/CS |
Chip select input pins |
|
|
7 |
A0 |
Data/ Instruction select signal |
|
|
8 |
/RES |
Controller reset signal, Active Low |
|
|
9-16 |
DB0~DB7 |
Data bus line |
|
|
17 |
LEDA |
Power supply for backlight (+5.0V) |
|
|
18 |
VEE |
Negative Voltage Output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Interface Pin Function(J5) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
/RES |
Controller reset signal, Active Low |
|
|
2 |
/RD |
Data read. Read data from LCD Controller |
|
|
3 |
/WR |
Data write. Write data into LCD Controller |
|
|
4 |
/CS |
Chip select input pins |
|
|
5 |
A0 |
Data/ Instruction select signal |
|
|
6-13 |
DB0~DB7 |
Data bus line |
|
|
14 |
VDD |
Power supply for logic(+5.0V) |
|
|
15 |
VSS |
Ground(0V) |
|
|
16 |
VOUT |
Negative Voltage Output |
|
|
17 |
V0 |
Contrast Adjustment |
|
|
18 |
DCLK(XL) |
TP serial clock input/TP Left signal in X Axis |
|
|
19 |
DOUT(XR) |
TP serial data output/TP Right signal in X Axis |
|
|
20 |
DIN(YU) |
TP serial data in/TP Upper signal in Y Axis |
|
|
21 |
T-CS(YD) |
TP Chip select/ TP Lower signal in Y Axis |
|
|
22 |
PEN |
TP Pen interrupt |
|
|
23 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
24 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
160.0 x 109.0 x 11.0 |
mm |
|
|
Viewing Area |
122.0 x 92.0 |
mm |
|
|
Mounting Hole |
152.0 x 101.0 |
mm |
|
|
Dots Pitch |
0.36 x 0.36 |
mm |
|
|
Dots Size |
0.30 x 0.30 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
|
