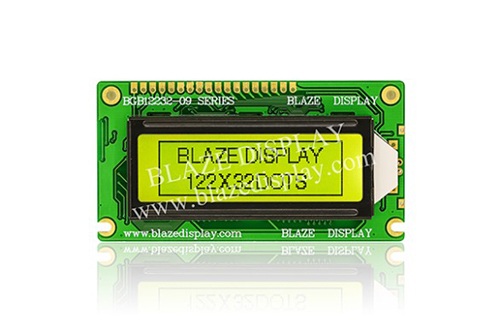

Module LCD graphique série 122X32

Modules d'affichage graphique LCD série 122 * 32

Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 View Direction Interface IC Part No. Control-Board Brightness
(cd/m²)		 Recommended Touch Screen Temperature
(°C)		 O-Film
122*32
BGB12232-C02
BGB12232-C02 2.01'' 65.60 × 29.20 × 5.40 54.80 × 19.10 48.76 × 15. 32 6H / 12H SPI & Parallel SBN1661G None -20～70
122*32
BGB12232-C03
BGB12232-C03 2.01'' 65.60 × 29.20 × 5.40 54.80 × 19.10 48.76 × 15.32 6H / 12H SPI & Parallel SBN1661G None -20～70
122*32
BGB12232-01
BGB12232-01 2'' 66.30 × 27.50 × 8.50 54.80 × 18.30 48.76 × 14.36 6H / 12H SPI & Parallel AIP31020 or Eqv. None -20～70
122*32
BGB12232-02
BGB12232-02 2'' 68.60 × 27.50 × 7.20 61.00 × 18.00 48.76 × 14.68 6H / 12H 6800 8-bit parallel SBN1661G None -20～70
122*32
BGB12232-03
BGB12232-03 2'' 74.00 × 40.00 × 8.60 60.00 × 18.00 48.76 × 14.68 6H / 12H 6800 4/8-bit parallel AIP31020 or Eqv. None -20～70
122*32
BGB12232-04
BGB12232-04 2'' 76.30 × 29.00 × 5.80 61.00 × 19.00 48.76 × 14. 68 6H / 12H SPI & Parallel SBN1661G None -20～70
122*32
BGB12232-05
BGB12232-05 2'' 76.40 × 29.10 × 7.00 61.00 × 18.00 48.76 × 14. 68 6H / 12H SPI & Parallel SBN1661G None -20～70
122*32
BGB12232-06
BGB12232-06 2'' 78.00 × 41.50 × 9.80 60.00 × 18.00 48.76 × 14.68 6H / 12H 6800 8-bit parallel SBN1661G None -20～70
122*32
BGB12232-07
BGB12232-07 2'' 80.80 × 29.10 × 12.80 59.98 × 18.00 48.76 × 14.68 6H / 12H 6800 8-bit parallel SBN1661G None -20～70
122*32
BGB12232-08
BGB12232-08 2'' 80.00 × 36.00 × 12.80 60.00 × 18.00 48.76 × 14.68 6H / 12H SPI & Parallel SBN1661G None -20～70
