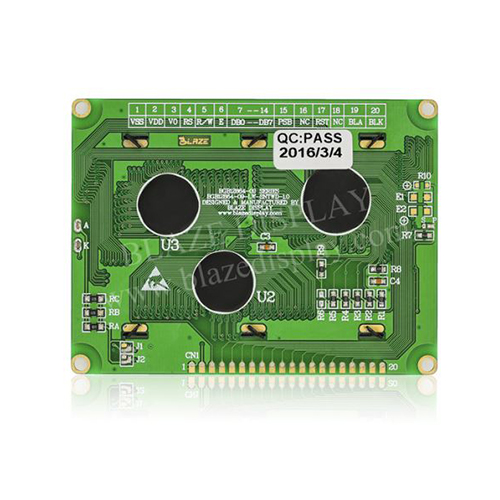

BGB12864-09
Model No. BGB12864-09
Taille du contour (mm): 93.00 × 70.00 × 12.50
Zone d'observation ： 72.00 × 40.00
Surface active: 66.52 × 33.24
Contrôleur IC: AIP31020 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de référence: BGB12864-09
● LCD de caractères 128 x 64 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur Bulit-in ((AIP31020 ou équivalent), avec police chinoise
● Alimentation + 3.3V / + 5.0V
● 1/64 devoir, 1/9bias
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 4/8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
3 |
V0 |
Contrast Adjustment |
|
4 |
RS(CS) |
Data/ Instruction select signal(Chip select in serial) |
|
5 |
R/W(SID) |
Read/Write select signal(Serial data input) |
|
6 |
E(SCLK) |
Enable signal(Serial clock) |
|
7~14 |
DB0~DB7 |
Data bus line |
|
15 |
PSB |
Interface selection: 0—serial mode,1---8/4bits parallel mode |
|
16 |
NC |
No connection |
|
17 |
RST |
Reset signal |
|
18 |
NC |
No connection |
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
||
|
Mechanical Data |
||
|
Item |
Standard Value |
Unit |
|
Module Dimension |
93.0 x 70.0 |
mm |
|
Viewing Area |
72.0 x 39.0 |
mm |
|
Mounting Hole |
88.0 x 65.0 |
mm |
|
Dots Pitch |
0.52 x 0.52 |
mm |
|
Dots Size |
0.48 x 0.48 |
mm |
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
0 |
V |
