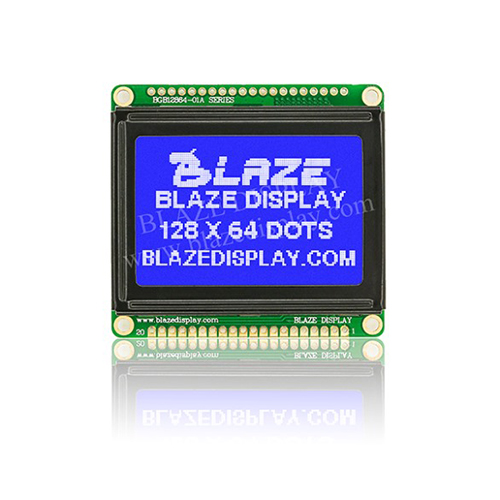

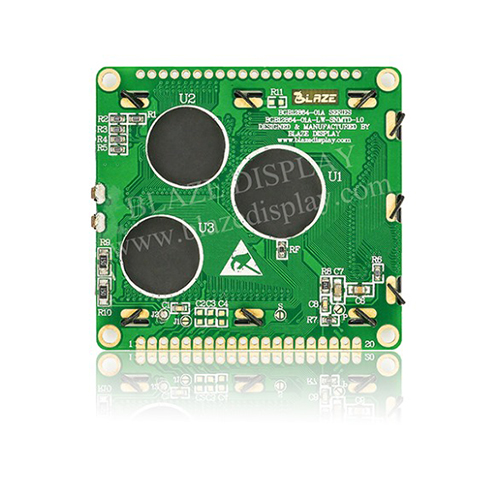

BGB12864-01
Model No. BGB12864-01
Taille du contour (mm): 54.00 × 50.00 × 7.45
Zone d'affichage ： 43.50 × 28.80
Surface active ： 40.92 × 24.92
Contrôleur IC: AIP31108 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de pièce: BGB12864-01
● LCD de caractères 128 x 64 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (AIP31108 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/64 devoir, 1/9bias
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 4/8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
RS |
Data/ Instruction select signal |
|
|
5 |
R/W |
Read/Write select signal |
|
|
6 |
E |
Enable signal |
|
|
7-14 |
DB0~DB7 |
Data bus line |
|
|
15 |
CS1 |
Chip select signal |
|
|
16 |
CS2 |
Chip select signal |
|
|
17 |
RST |
Reset signal |
|
|
18 |
VEE |
Negative voltage output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
54.0 x 50.0 |
mm |
|
|
Viewing Area |
43.5 x 28.8 |
mm |
|
|
Mounting Hole |
49.0 x 45.0 |
mm |
|
|
Dots Pitch |
0.32 x 0.39 |
mm |
|
|
Dots Size |
0.28 x 0.35 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
8.7 |
V |
