Графический ЖК Индикатор BGB12232-06

Model No. BGB12232-06

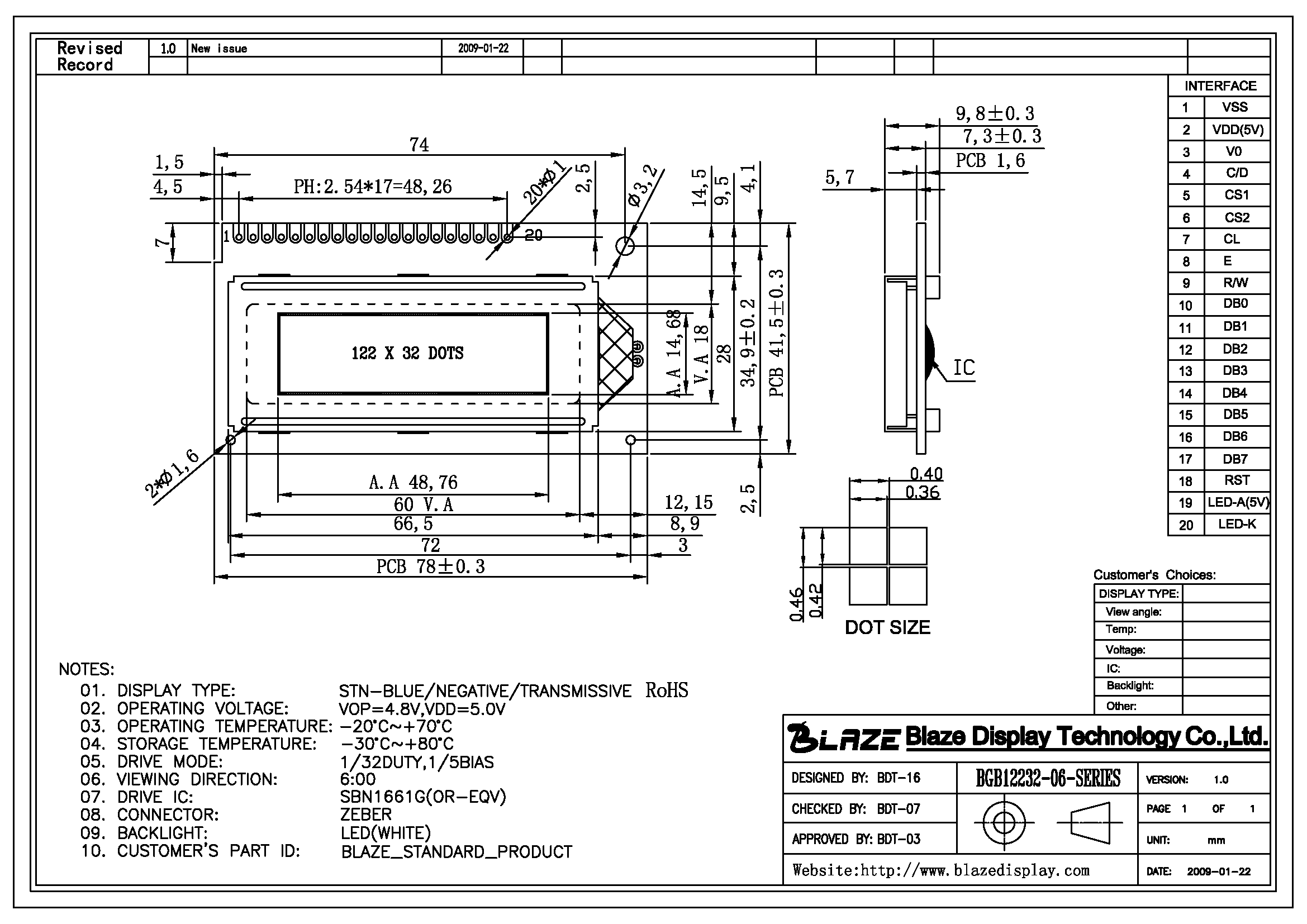

Outline size(mm): 78.00 × 41.50 × 9.80
Viewing Area:60.00 × 18.00
Active Area: 48.76 × 14. 68
Controller IC: SBN1661G.
Interface: SPI & Parallel
Remarks: 1×20PIN
Backlight:LED

Part Number: BGB12232-06

● Grahpic LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (SBN1661G or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T


Blaze Display is one of the best China graphic lcd display bgb12232-06 manufacturers and suppliers. We are always at your service.

Interface Pin Function

Pin No.

Symbol

Description

1

VSS

Ground(0V)

2

VDD(5V)

Power supply for logic

3

V0

Contrast Adjustment

4

C/D

Data/ Instruction select signal

5

CS1

Chip select signal

6

CS2

Chip select signal

7

CL

External clock source input

8

E

Enable signal

9

R/W

Read/Write select signal

10~17

DB0~DB7

Data bus line

18

RST

reset

19

LED-A(5V)

Power supply for B/L +

20

LED-K

Power supply for B/L -
