Графический ЖК Индикатор BGB12232-12

Model No. BGB12232-12

Outline size（mm）： 76.80 × 28.00 × 8.50
Viewing Area：61.00 × 19.00
Active Area： 58.52 × 17.24
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 1×7PIN
Backlight：LED

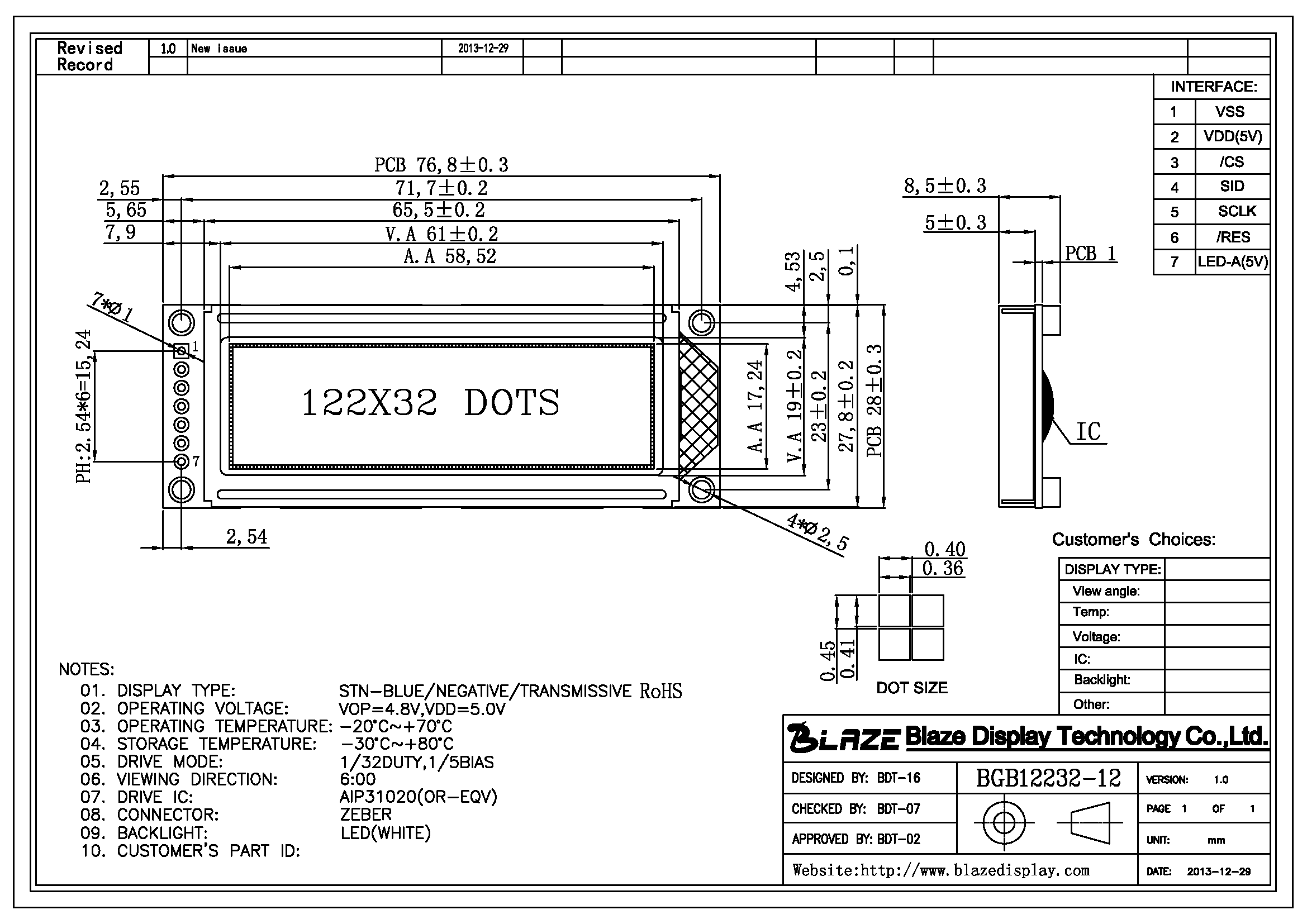

DATASHEET

Part Number: BGB12232-12

● Character LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T

Blaze Display is one of the best China graphic lcd display bgb12232-12 manufacturers and suppliers. We are always at your service.

Interface Pin Function
Pin No.	Symbol	Description
1	VSS	Ground(0V)
2	VDD(5V)	Power supply for logic(+5.0V)
3	/CS	Chip Select
4	SID	Serial clock input
5	SCLK	Serial data input
6	/RES	reset
7	LED-A(5V)	Power supply for backlight
