Графический ЖК Индикатор BGB128128-01
Model No. BGB128128-01
Outline size（mm）： 92.00 × 106.00 × 12.10
Viewing Area：73.00 × 73.00
Active Area： 70.35 × 70.35
Controller IC： SAP1024 or Eqv.
Interface： 8080 Parallel
Remarks： 1×20PIN
Backlight：LED
Part Number: BGB128128-01
● Graphic LCD 128 x 128 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((SAP1024 or Equivalent)
● +3.3V / +5.0V power supply
● 1/128 duty, 1/12bias
● Viewing Direction: 6H / 12H
● Interface: 8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB128128-01 manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VDD(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
VEE |
Negative Voltage Output |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CE |
Enable signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
RSTB |
Controller reset signal, Active Low |
|
|
10~17 |
DB0~DB7 |
Data bus line |
|
|
18 |
FS |
Selection of font; H: 6 * 8, L: 8 * 8 |
|
|
19 |
LED+(3.2V) |
Power supply for B/L + |
|
|
20 |
LED- |
Power supply for B/L - |
|
|
|
|||
|

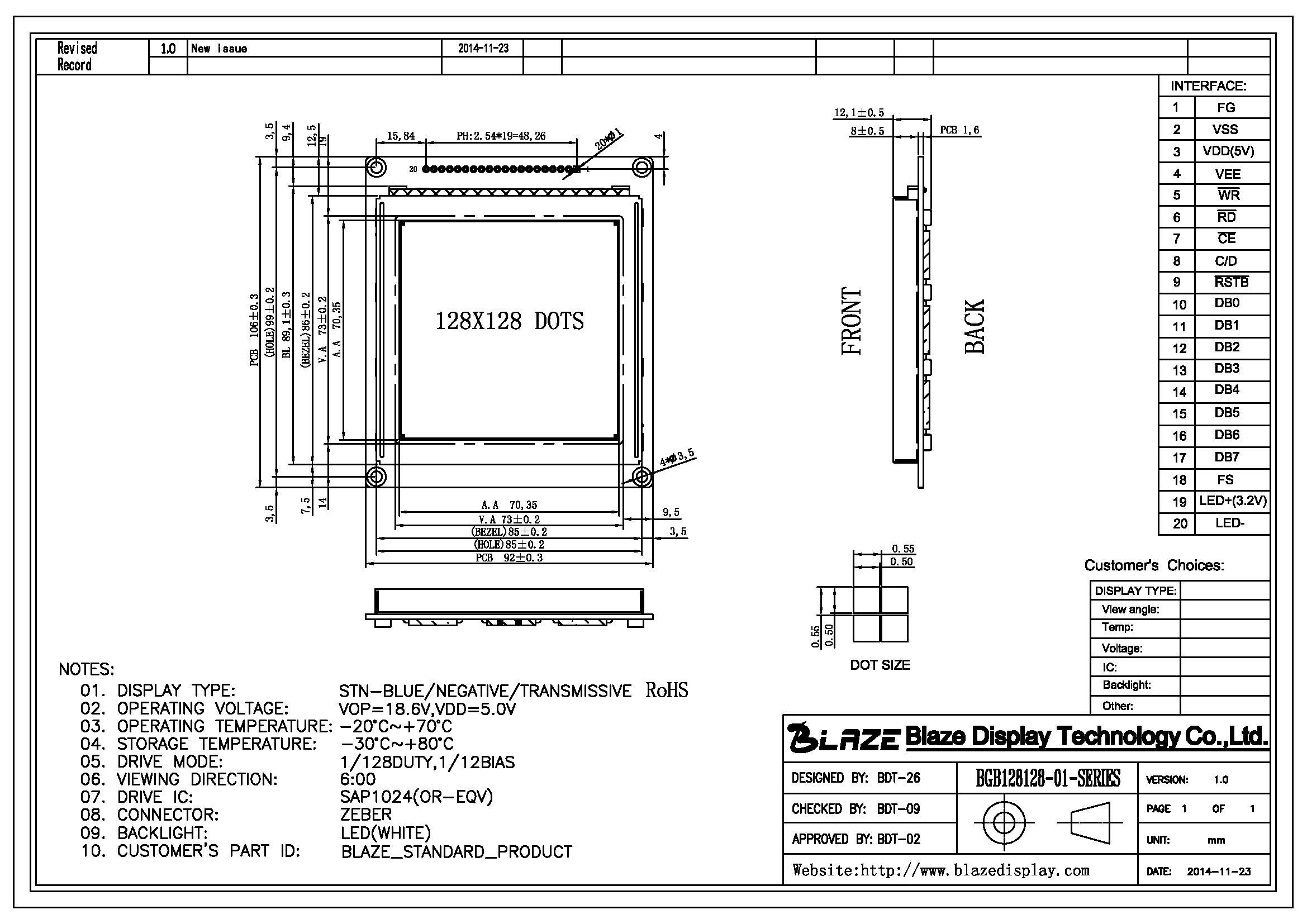

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
92.0 x 106.0 |
mm |
|
|
Viewing Area |
73.0 x 73.0 |
mm |
|
|
Mounting Hole |
85.0 x99.0 |
mm |
|
|
Dots Pitch |
0.55 x 0.55 |
mm |
|
|
Dots Size |
0.50 x 0.50 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
18.0 |
V |
