Графический ЖК Индикатор BGB16032-02

Model No. BGB16032-02

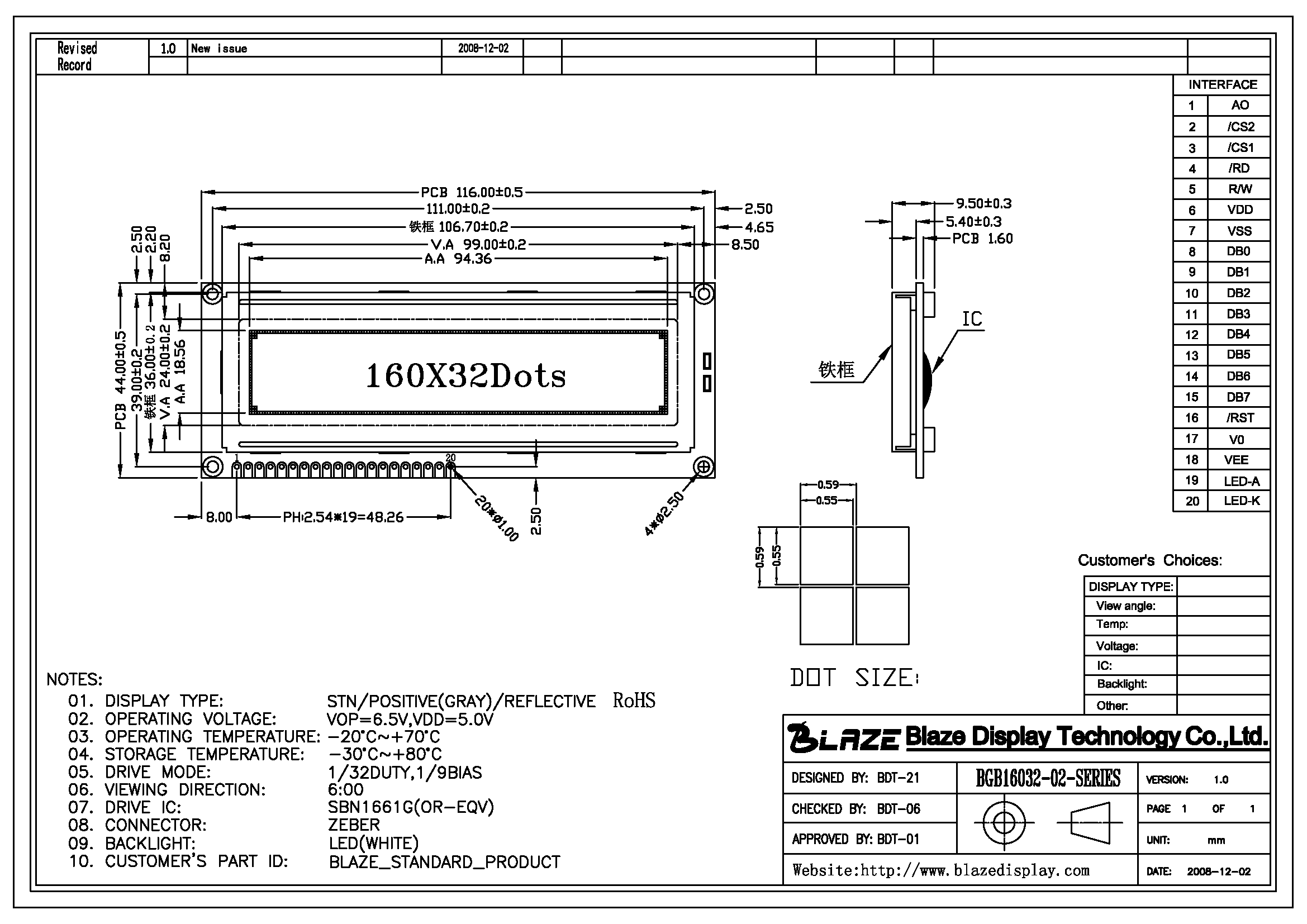

Outline size(mm): 116.00 × 44.00 × 9.50
Viewing Area:99.00 × 24.00
Active Area: 94.36 × 18.56
Controller IC: SBN1661G.
Interface: SPI & Parallel
Remarks: 1×20PIN
Backlight:LED

Part Number: BGB16032-02

● Graphic LCD 160 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (SBN1661G or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T


Blaze Display is one of the best China graphic lcd display bgb16032-02 manufacturers and suppliers. We are always at your service.

SPECIFICATIONS

Interface Pin Function

Pin No.

Symbol

Description

1

A0

Data/ Instruction select signal

2

/CS2

Chip select signal

3

/CS1

Chip select signal

4

/RD

Read signal

5

R/W

Read/Write select signal

6

VDD

Power supply for logic

7~14

VSS

Ground

15

DB0~DB7

Data bus line

16

RST

Reset

17

V0

Contrast Adjustment

18

VEE

Negative voltage output

19

LED-A

Power supply for B/L +

20

LED-K

Power supply for B/L -
