Графический ЖК Индикатор BGB16032-05

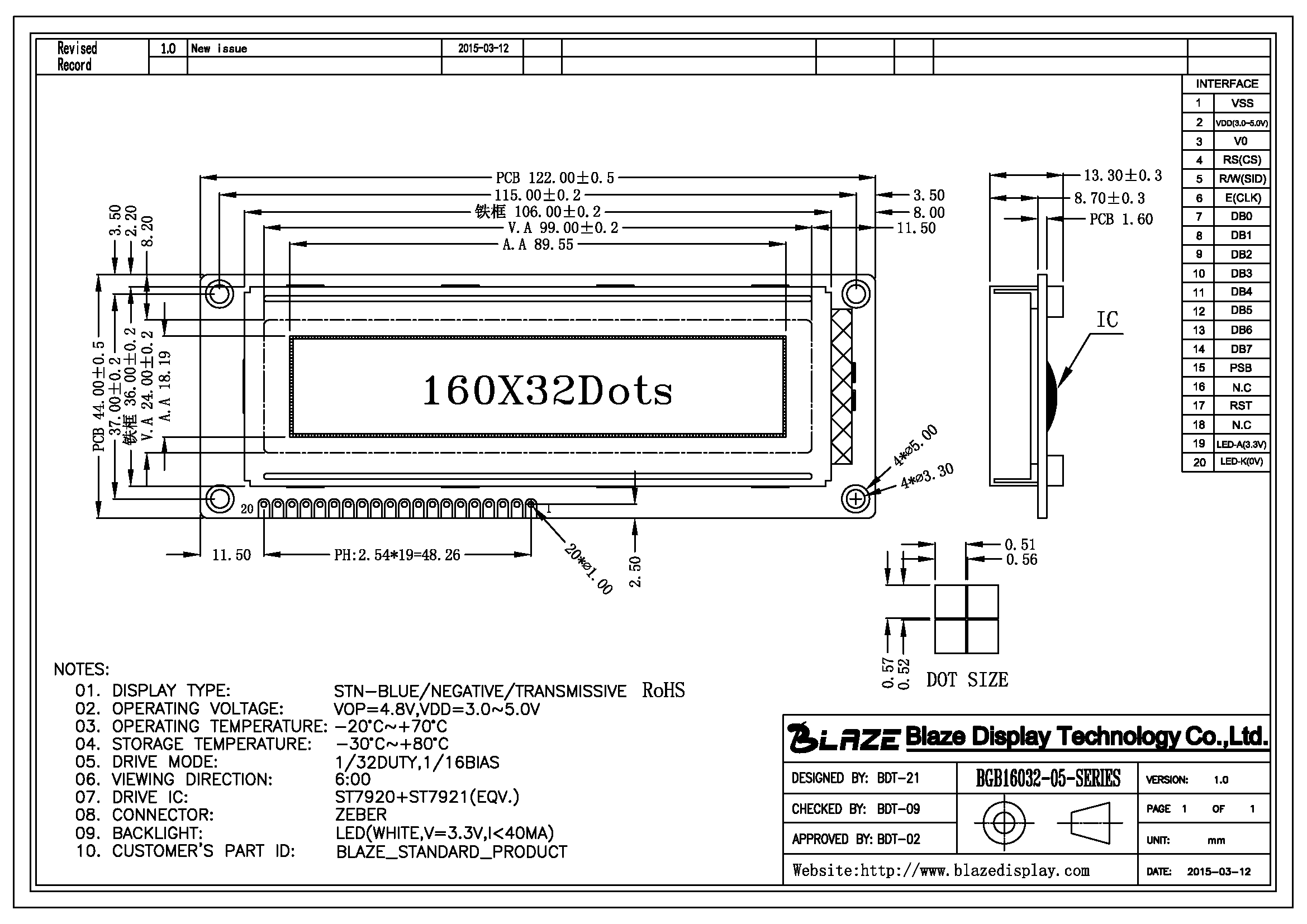

Model No. BGB16032-05
Outline size（mm）： 122.00 × 44.00 × 13.3
Viewing Area：99.00 × 24.00
Active Area： 89.55 × 18.19
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 1×20PIN
Backlight：LED
Part Number: BGB16032-05
● Graphic LCD 160 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel or SPI
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
