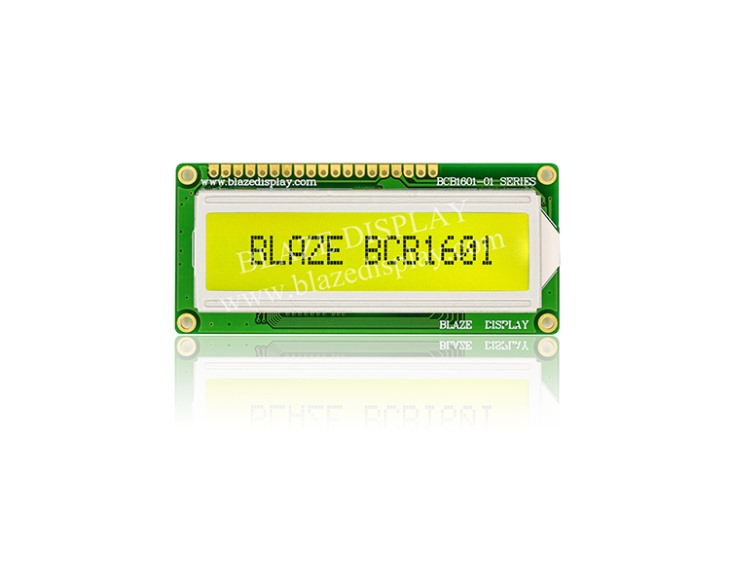

Символьный ЖК индикатор BCB1601-03A
Model No. BCB1601-03A
Outline size（mm）： 80.00 × 36.00 × 11.80
Viewing Area： 64.30 × 13.90
Active Area： 59.46 × 5.96
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×16PIN
Part No. ：BCB1601-03A
● Character LCD 16x1 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Bulit-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Blaze Display is one of the best China character lcd display bcb1601-03a manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||||||||||||||||
|
Interface Pin Function |
|||||||||||||||||
|
Pin No. |
Symbol |
Description |
|||||||||||||||
|
1 |
VSS |
Ground |
|||||||||||||||
|
2 |
VDD |
Power supply for logic |
|||||||||||||||
|
3 |
VO |
Contrast Adjustment |
|||||||||||||||
|
4 |
RS |
Data/ Instruction select signal |
|||||||||||||||
|
5 |
R/W |
Read/Write select signal |
|||||||||||||||
|
6 |
E |
Enable signal |
|||||||||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
|||||||||||||||
|
15 |
LED-A |
Backlight power supply |
|||||||||||||||
|
16 |
LED-K |
Backlight ground |
|||||||||||||||
|

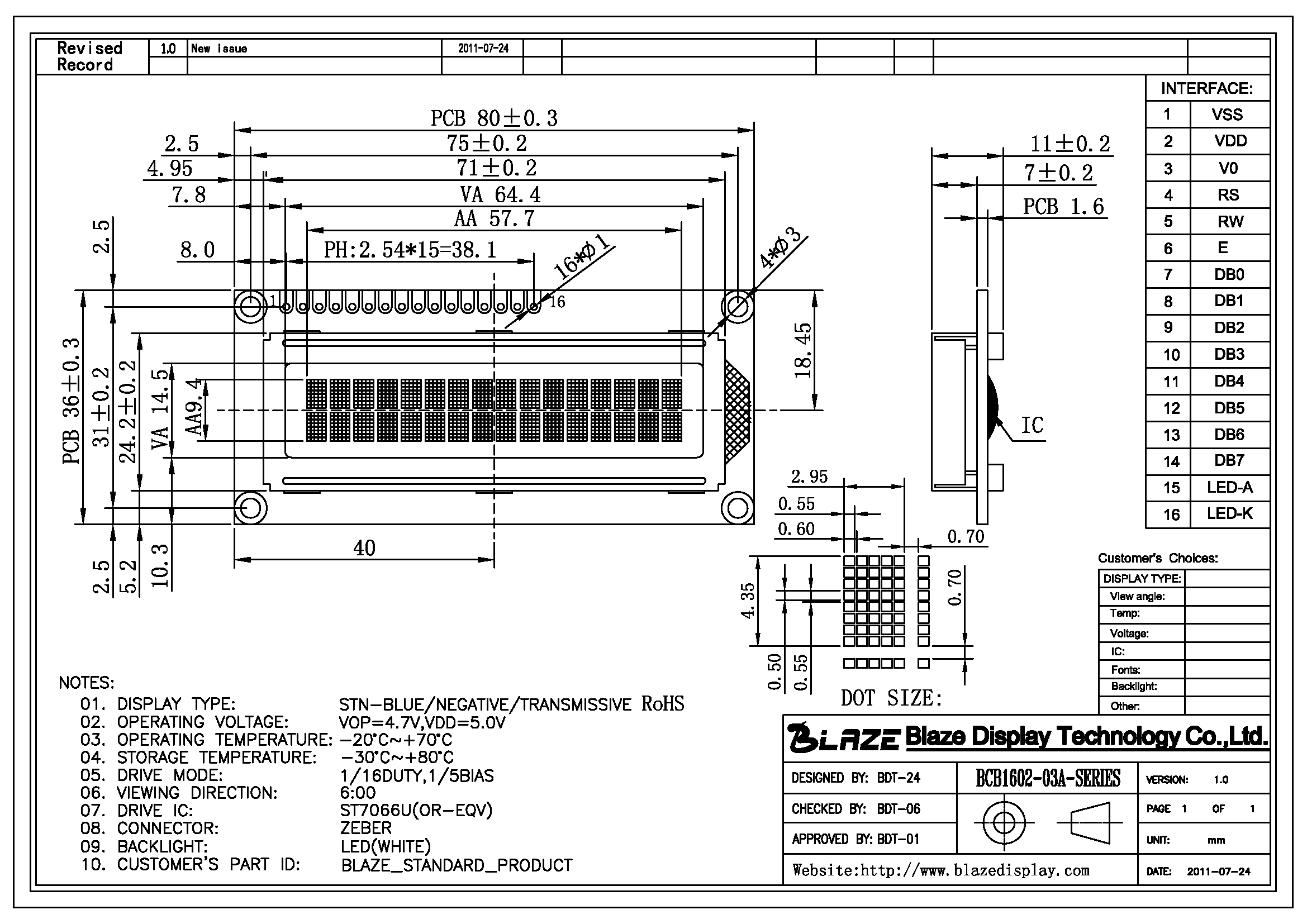

Mechanical Data |
|||||||||||||||||
|
Item |
Standard Value |
Unit |
|||||||||||||||
|
Module Dimension |
80.0 x 36.0 |
mm |
|||||||||||||||
|
Viewing Area |
64.3 x 13.9 |
mm |
|||||||||||||||
|
Mounting Hole |
75.0 x 31.0 |
mm |
|||||||||||||||
|
Character Size |
3.21 x 5.96 |
mm |
|||||||||||||||
|
Electrical Characteristics |
|||||||||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
||||||||||||||
|
Input Voltage |
VDD |
5 |
V |
||||||||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
||||||||||||||
|
Display Character Address Code |
|||||||||||||||||
|
Display Position |
1 |
8 |
9 |
16 |
|||||||||||||
|
DD RAM Address |
00 |
07 |
40 |
47 |
|||||||||||||
