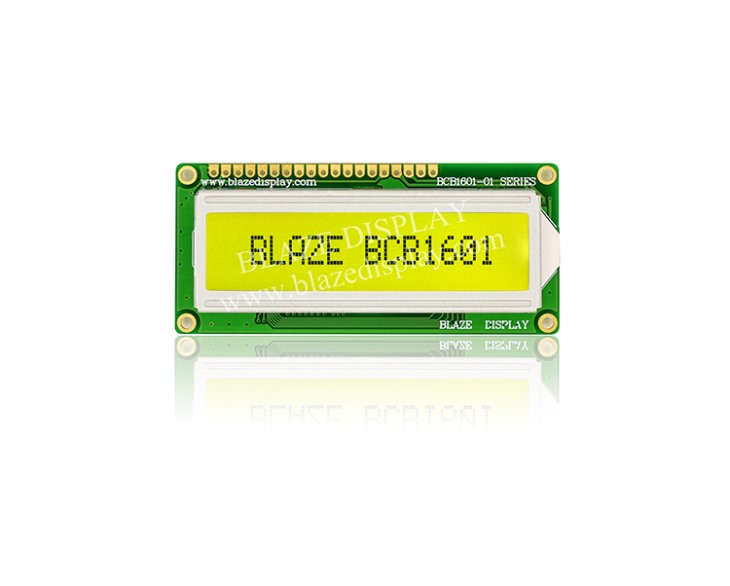

Символьный ЖК индикатор BCB1601-04
Model No. BCB1601-04
Part Number： BCB1601-04
Tech： COB
Outline size（mm）： 80.00 × 36.00 × 9.00
Viewing Area： 65.00 × 14.00
Active Area： 59.46 × 5.96
Controller IC： AIP31066 or Eqv.
Interface： Parallel
BL： LED
Remarks： 2×16PIN
Part Number： BCB1601-04
Tech： COB
Outline size（mm）： 80.00 × 36.00 × 9.00
Viewing Area： 65.00 × 14.00
Active Area： 59.46 × 5.96
Controller IC： AIP31066 or Eqv.
Interface： Parallel
BL： LED
Remarks：2×16PIN
Blaze Display is one of the best China character lcd display bcb1601-04 manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||||||||||||||||
|
Interface Pin Function |
|||||||||||||||||
|
Pin No. |
Symbol |
Description |
|||||||||||||||
|
1 |
VSS |
Ground |
|||||||||||||||
|
2 |
VDD |
Power supply for logic |
|||||||||||||||
|
3 |
VO |
Contrast Adjustment |
|||||||||||||||
|
4 |
RS |
Data/ Instruction select signal |
|||||||||||||||
|
5 |
R/W |
Read/Write select signal |
|||||||||||||||
|
6 |
E |
Enable signal |
|||||||||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
|||||||||||||||
|
15 |
LED-A |
Backlight power supply |
|||||||||||||||
|
16 |
LED-K |
Backlight ground |
|||||||||||||||
|

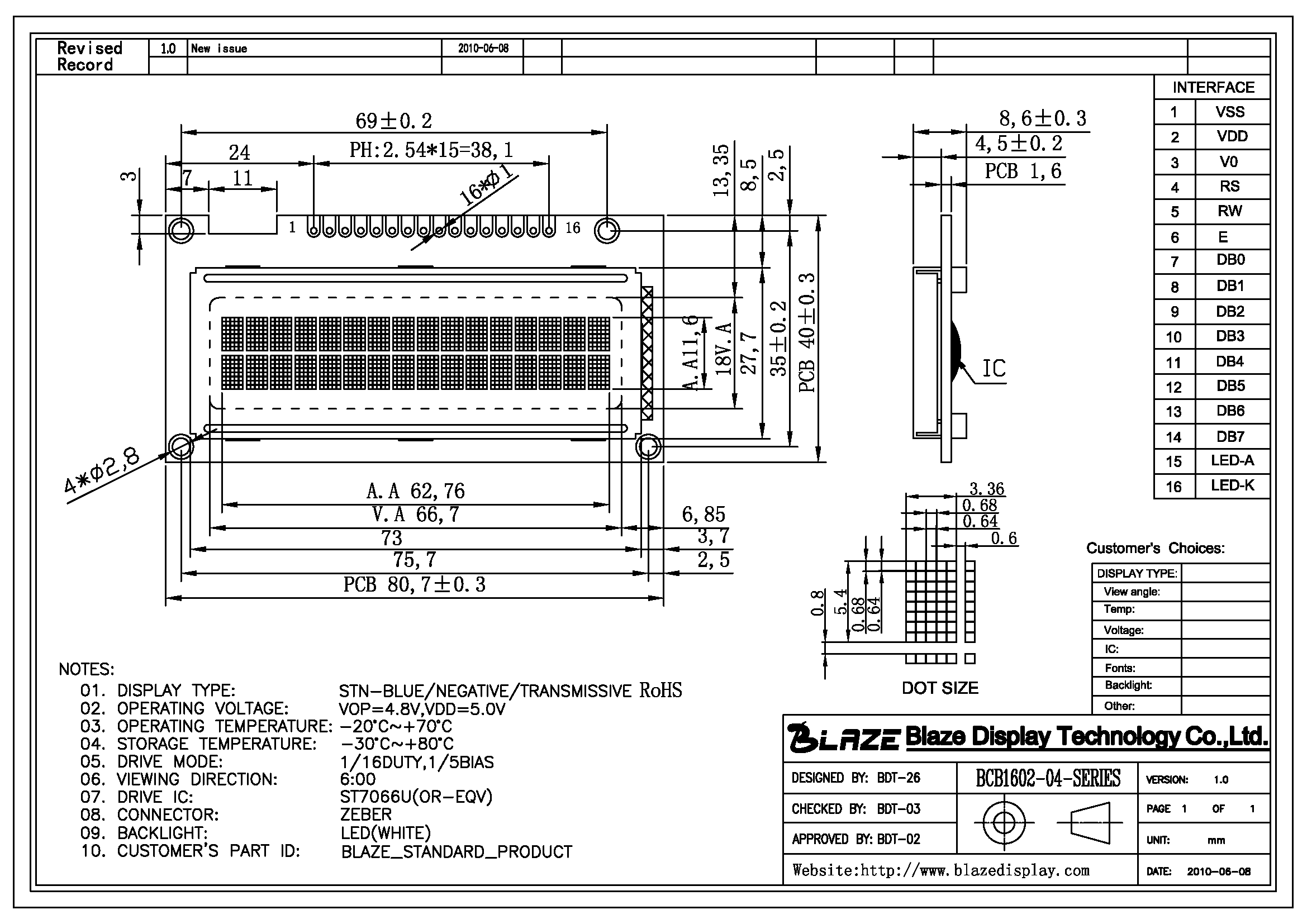

Mechanical Data |
|||||||||||||||||
|
Item |
Standard Value |
Unit |
|||||||||||||||
|
Module Dimension |
80.0 x 36.0 |
mm |
|||||||||||||||
|
Viewing Area |
64.5 x 14.5 |
mm |
|||||||||||||||
|
Mounting Hole |
75.0 x 31.0 |
mm |
|||||||||||||||
|
Character Size |
3.21 x 5.96 |
mm |
|||||||||||||||
|
Electrical Characteristics |
|||||||||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
||||||||||||||
|
Input Voltage |
VDD |
5 |
V |
||||||||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
||||||||||||||
|
Display Character Address Code |
|||||||||||||||||
|
Display Position |
1 |
8 |
9 |
16 |
|||||||||||||
|
DD RAM Address |
00 |
07 |
40 |
47 |
|||||||||||||
