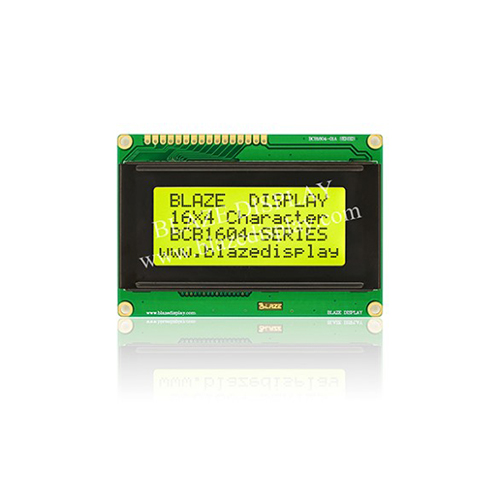

Символьный ЖК Индикатор BCB1604-01A

Model No. BCB1604-01A

Outline size(mm): 87.00 × 60.00 × 12.80

Viewing Area: 62.00 × 26.00

Active Area: 56.20 × 20.80

Controller IC: ST7066U or Eqv.

Interface: Parallel

Backlight:LED

Remarks: 1×16PIN

Part No. BCB1604-01A

● Character LCD 16x4 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Bulit-in controller (ST7066U or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)


Blaze Display is one of the best China character lcd display BCB1604-01A manufacturers and suppliers. We are always at your service.

SPECIFICATIONS

Interface Pin Function

Pin No.

Symbol

Description

1

VSS

Ground

2

VDD

Power supply for logic

3

VO

Contrast Adjustment

4

RS

Data/ Instruction  select signal

5

R/W

Read/Write select signal

6

E

Enable signal

7~14

DB0~DB7

Data bus line

15

LED-A

Backlight power supply

16

LED-K

Backlight ground

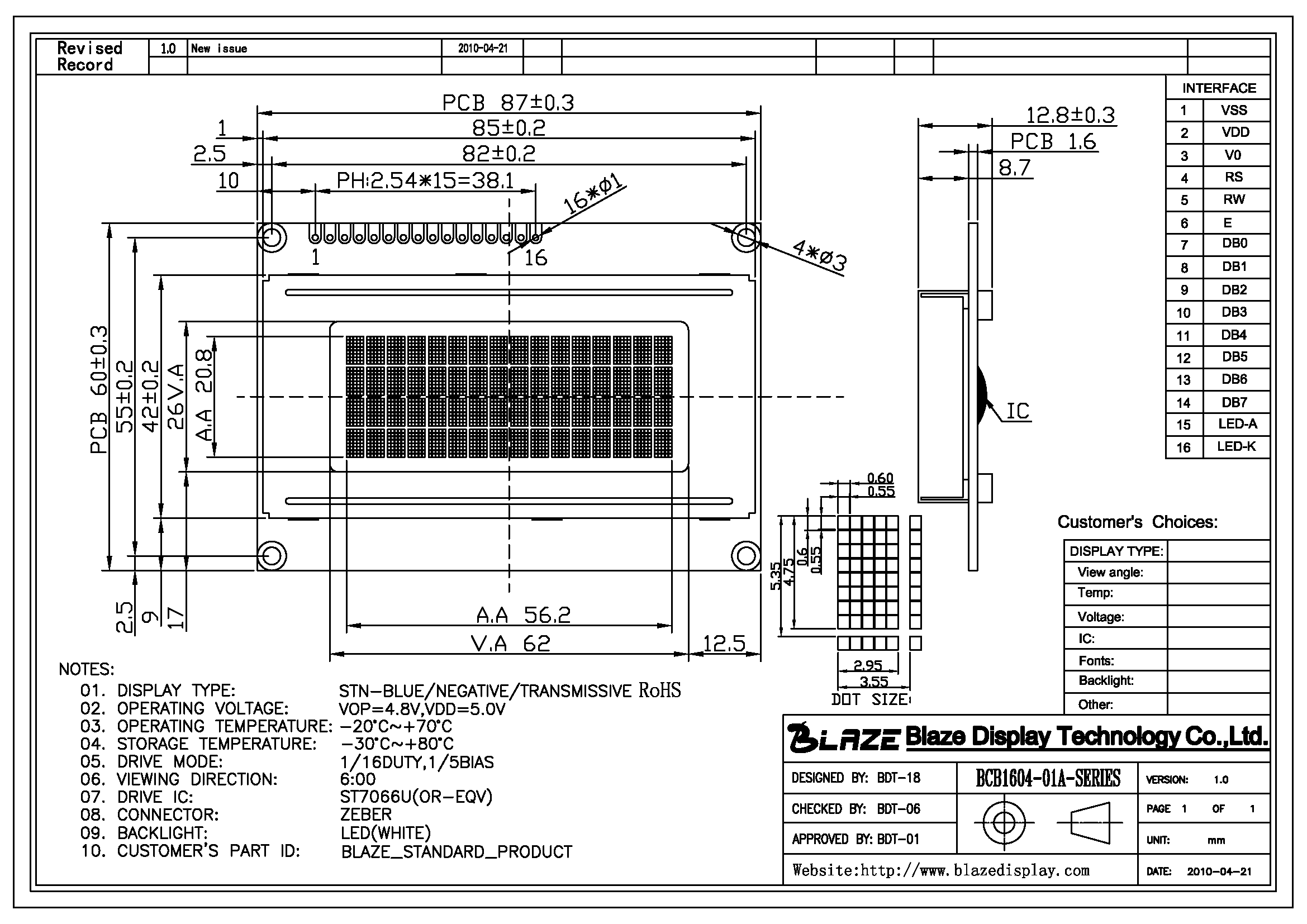

Mechanical Data

Item

Standard Value

Unit

Module Dimension

87.0x 60.0

mm

Viewing Area

62.0 x26.0

mm

Mounting Hole

 85.0x 55.0

mm

Character Size

 2.95x 4.75

mm



Electrical Characteristics

Item

Symbol

Standard Value (typ.)

Unit

Input Voltage

VDD

5

V

Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C

VDD-VO

3.7

V



Display Character Address Code

Display Position

1

-

-

-

-

-

-

16

DD RAM Address(IC1)

00

-

-

-

-

-

-

0F

DD RAM Address(IC1)

40

-

-

-

-

-

-

4F

DD RAM Address(IC2)

10

-

-

-

-

-

-

1F

DD RAM Address(IC2)

50

-

-

-

-

-

-

5F
