Графический ЖК Индикатор BGB240128-02A
Model No. BGB240128-02A

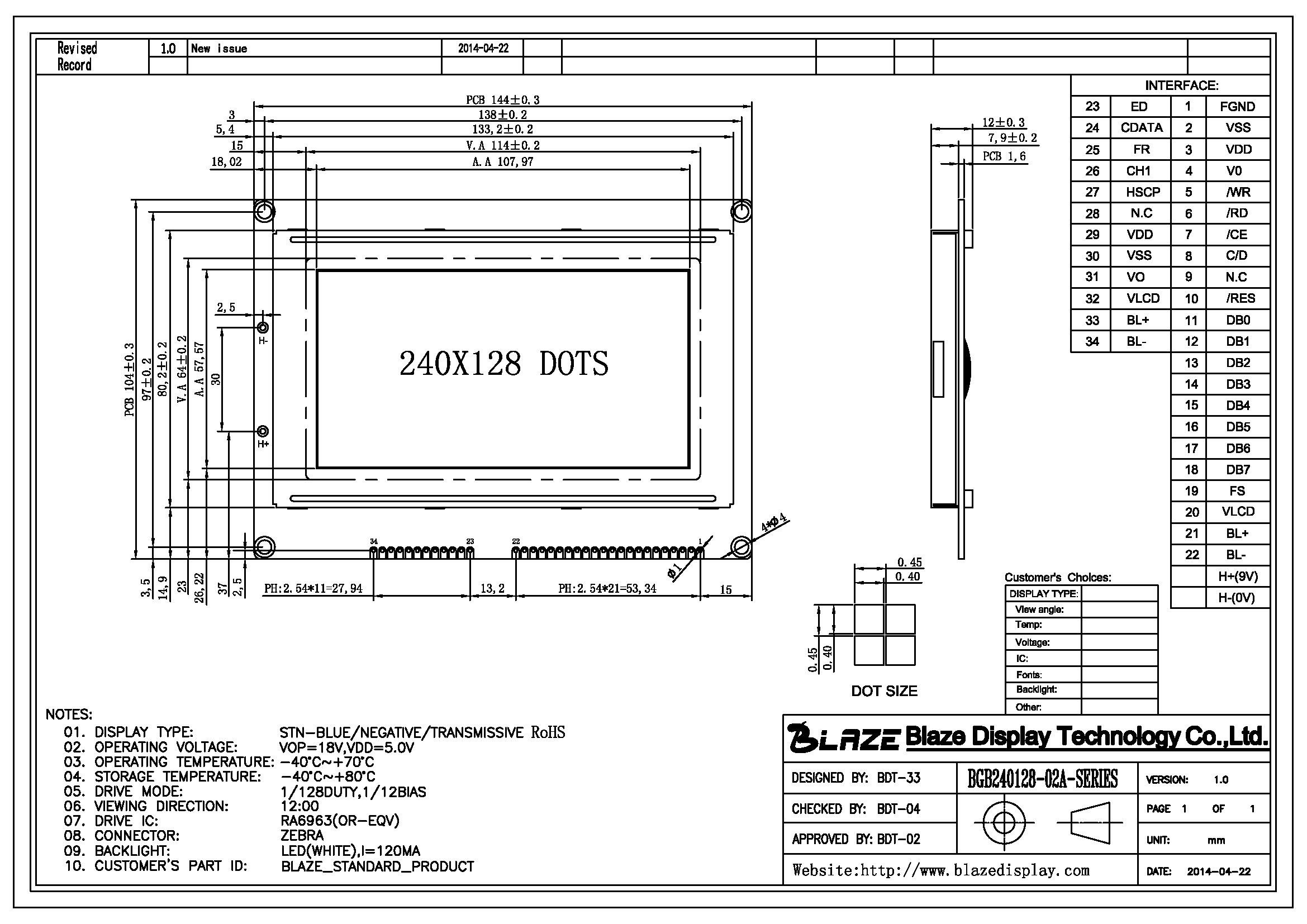

Outline size（mm）： 144.00 × 104.00 × 12.00
Viewing Area：114.00 × 64.00
Active Area： 107.97 × 57.57
Controller IC： RA6963 or Eqv.
Interface： 8080 Parallel
Remarks： 1×34PIN
Backlight：LED
Part Number: BGB240128-02A
● Character LCD 240 x 128 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA6963 or Equivalent)
● +3.3V / +5.0V power supply
● 1/128 duty , 1/12bias
● Viewing Direction: 6H / 12H
● Interface: 8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB240128-02A manufacturers and suppliers. We are always at your service
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FGND |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VDD |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
/WR |
Data write. Write data into LCD Controller |
|
|
6 |
/RD |
Data read. Read data from LCD Controller |
|
|
7 |
/CE |
Chip select signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
N.C |
No connection |
|
|
10 |
/RES |
Controller reset signal, Active Low |
|
|
11~18 |
DB0~DB7 |
Data bus line |
|
|
19 |
FS |
Selection of font; H: 6 * 8, L: 8 * 8 |
|
|
20 |
VLCD |
Negative Voltage Output |
|
|
21 |
BL+ |
Power supply for backlight (+5.0V) |
|
|
22 |
BL- |
Ground for backlight(0V) |
|
|
|
H+(9V) |
Heater anode H+ |
|
|
|
H- |
Heater cathode H- |
|
|
23 |
ED |
Data output for columns |
|
|
24 |
CDATA |
Synchronous signal for row driver |
|
|
25 |
FR |
Frame signal |
|
|
26 |
CH1 |
Heating sheet power supply(or NC) |
|
|
27 |
HSCP |
Shift clock pulse for column driver of upper area of LCD |
|
|
28 |
N.C |
No connection |
|
|
29 |
VDD |
Power supply for logic(+5.0V) |
|
|
30 |
VSS |
Ground(0V) |
|
|
31 |
V0 |
Contrast Adjustment |
|
|
32 |
