Символьный ЖК Индикатор BCB2402-03

Model No. BCB2402-03

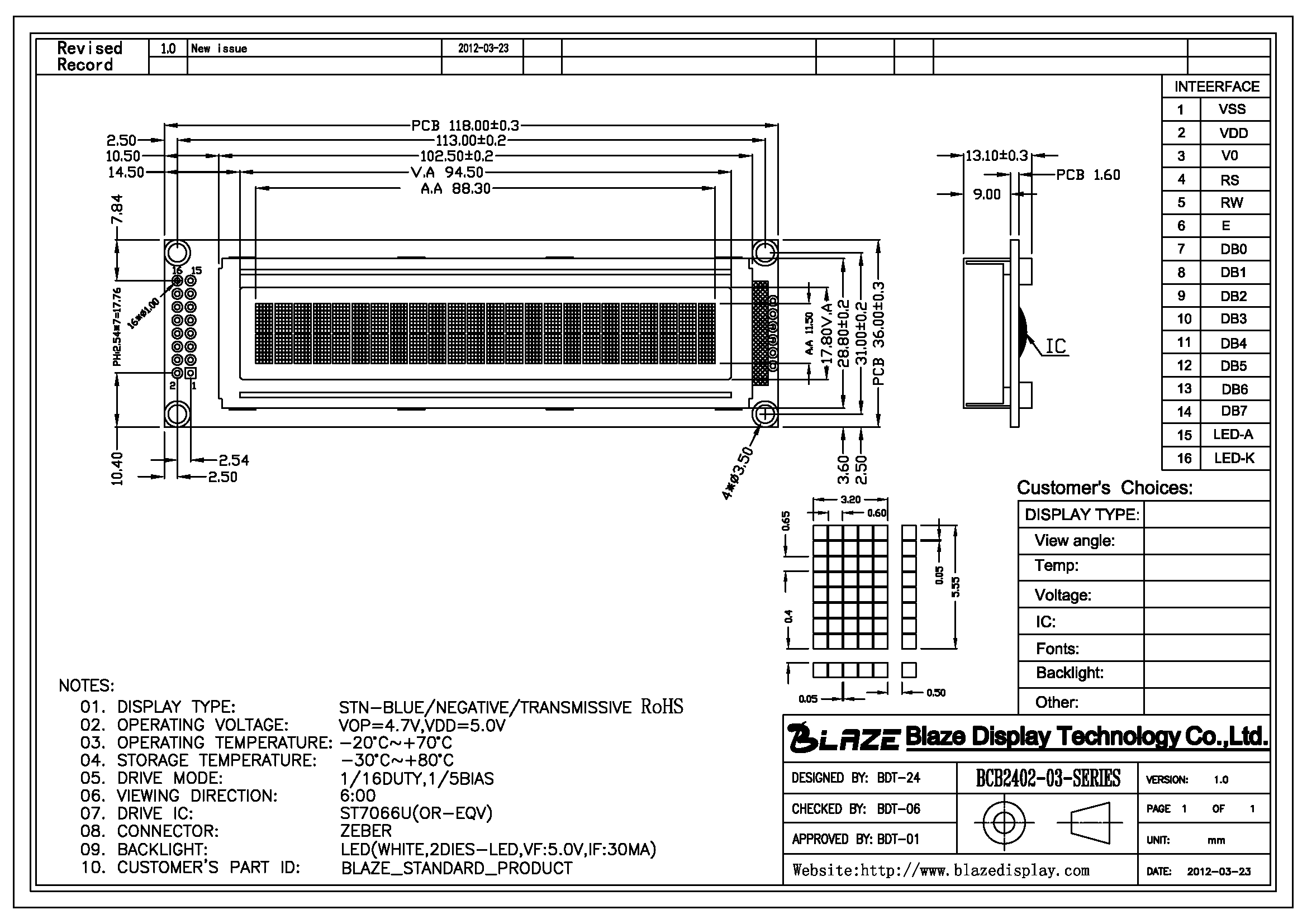

Outline size(mm): 118.00 × 36.00 × 13.10

Viewing Area: 94.50 × 17.80

Active Area: 88.30× 11.50

Controller IC: ST7066U or Eqv.

Interface: Parallel

Backlight:LED

Remarks: 2×8PIN

Part No. BCB2402-03

● Character LCD 24x2 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Bulit-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

Blaze Display is one of the best China character lcd display BCB2402-03 manufacturers and suppliers. We are always at your service.

Interface Pin Function

Pin No.

Symbol

Description

1

VSS

Ground

2

VDD

Power supply for logic

3

VO

Contrast Adjustment

4

RS

Data/ Instruction  select signal

5

R/W

Read/Write select signal

6

E

Enable signal

7~14

DB0~DB7

Data bus line

15

BLA

Backlight power supply

16

BLK

Backlight ground



Mechanical Data

Item

Standard Value

Unit

Module Dimension

237.0x 67.5

mm

Viewing Area

202.0x 35.5

mm

Mounting Hole

227.8 x 58.4

mm

Character Size

7.00x11.35

mm



Electrical Characteristics

Item

Symbol

Standard Value (typ.)

Unit

Input Voltage

VDD

5

V

Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C

VDD-VO

3.7

V



Display Character Address Code

Display Position

1

-

-

-

-

-

-

20

DD RAM Address(IC1)

00

-

-

-

-

-

-

17

DD RAM Address(IC1)

40

-

-

-

-

-

-

57
