BDT-T2837-04
Model No. BDT-T2837-04

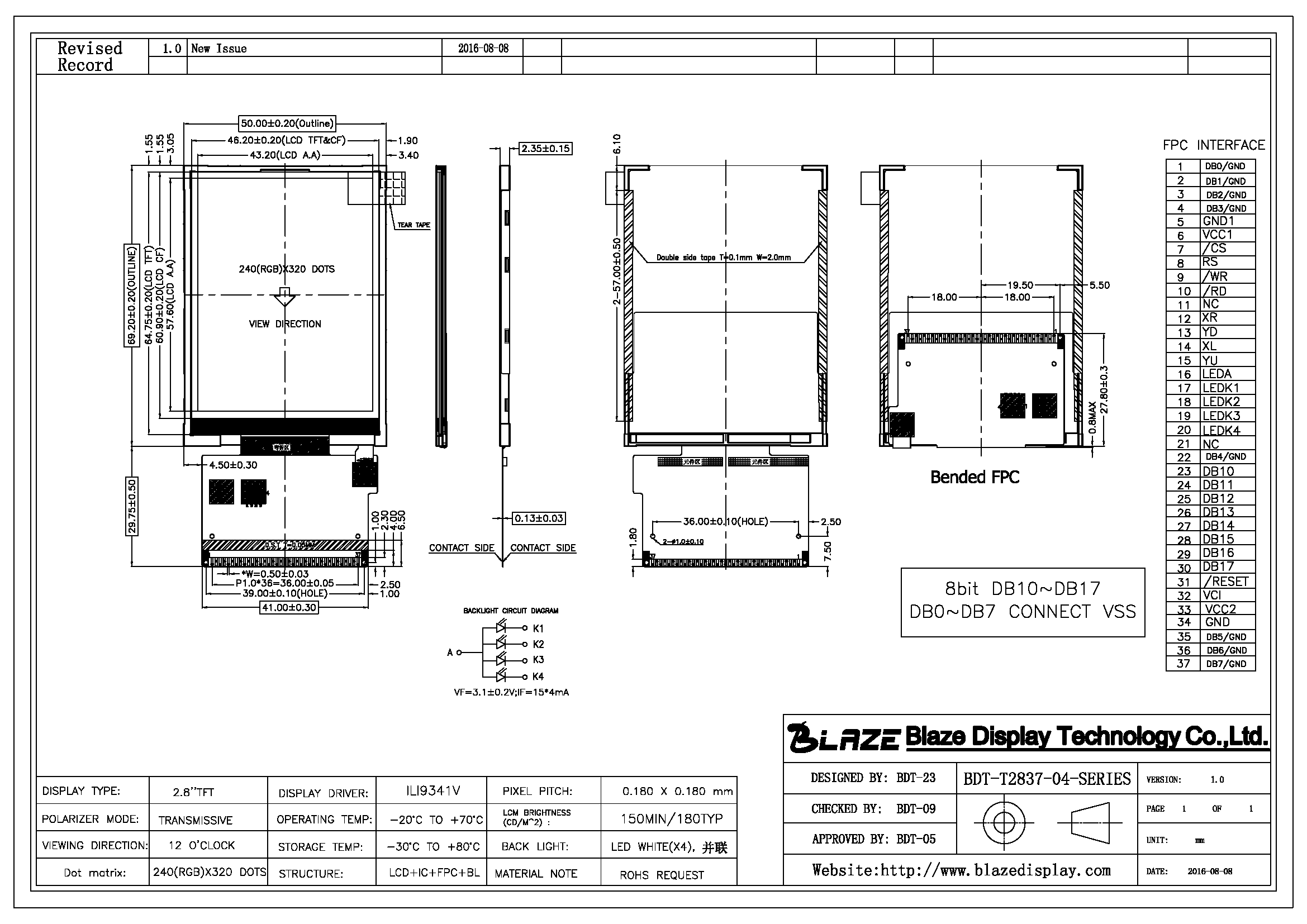

Outline size（mm）： 50.00 x 69.20 x 2.35
LCD TFT：46.26 x 64.75
Active Area： 43.20 × 57.60
Controller IC： ILI9341V.
Interface： 16BIT MCU
TP: Optional
Backlight：LED
Part Number: BDT-T2837-04
● Display Format: 240 x 320
● Size: 2.8"
● View Direction:12H
● Interface: 16BIT MCU
● Built-in Controller: ST7789V
● Control-Board: No
● Brightness(cd/m²): 350
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T2837-04 manufacturers and suppliers. We are always at your service.
|
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1~4 |
DB0-DB3 |
GND |
|||||||||||
|
5 |
GND |
Ground |
|||||||||||
|
6 |
VCC1 |
Digital IO Pad power supply(1.8V/2.8V) |
|||||||||||
|
7 |
/CS |
Chip select pin |
|||||||||||
|
8 |
RS |
Command and Data select pin |
|||||||||||
|
9 |
/WR |
Write enable pin |
|||||||||||
|
10 |
/RD |
Read enable pin |
|||||||||||
|
11 |
NC |
NC |
|||||||||||
|
12 |
XR |
Touch panel connect PIN |
|||||||||||
|
13 |
YD |
Touch panel connect PIN |
|||||||||||
|
14 |
XL |
Touch panel connect PIN |
|||||||||||
|
15 |
YU |
Touch panel connect PIN |
|||||||||||
|
16 |
LEDA |
Anode pin of backlight |
|||||||||||
|
17-20 |
LEDK1-4 |
Cathode pin of backlight |
|||||||||||
|
21 |
NC |
NC |
|||||||||||
|
22 |
DB4 |
GND |
|||||||||||
|
23-30 |
DB10-DB17 |
8-BIT Data Bus |
|||||||||||
|
31 |
/RESET |
Reset pin. |
|||||||||||
|
32 |
VCI |
Analog power supply |
|||||||||||
|
33 |
VCC2 |
Analog power supply |
|||||||||||
|
34 |
GND |
Ground |
|||||||||||
|
35-37 |
DB5-DB7 |
GND |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
2.8 |
inch |
|||||||||||
|
Dot Matrix |
240 × RGB × 320 (TFT) |
dots |
|||||||||||
|
Module dimension |
50.00(W) × 69.20(H) × 2.25(D) |
mm |
|||||||||||
|
Active area |
43.20 × 57.60 |
