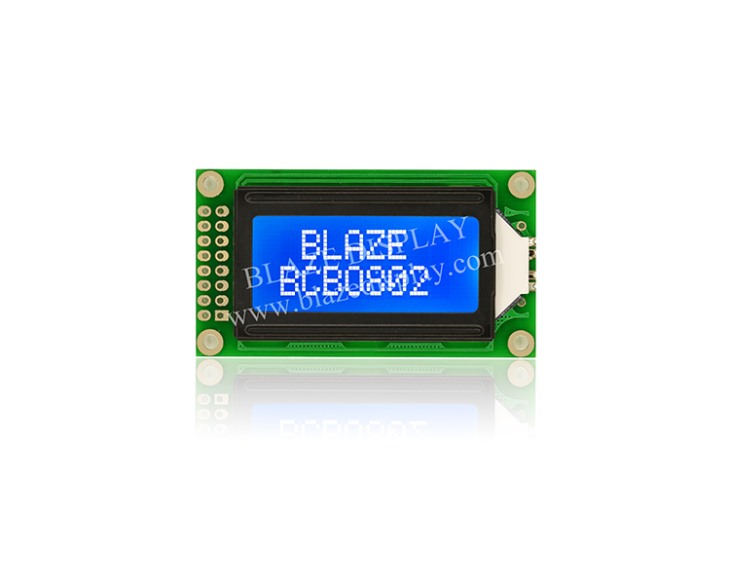

Символьный ЖК Индикатор BCB0802-02
Model No. BCB0802-02
Outline size（mm）：84.00×44.00 × 13.30
Viewing Area： 62.00 × 17.80
Active Area： 58.87 × 11.12
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×16 PIN
Part No. ：BCB0801-02
● Character LCD 8x1(5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
