BDT-T17710-01
Modelo No. BDT-T17710-01

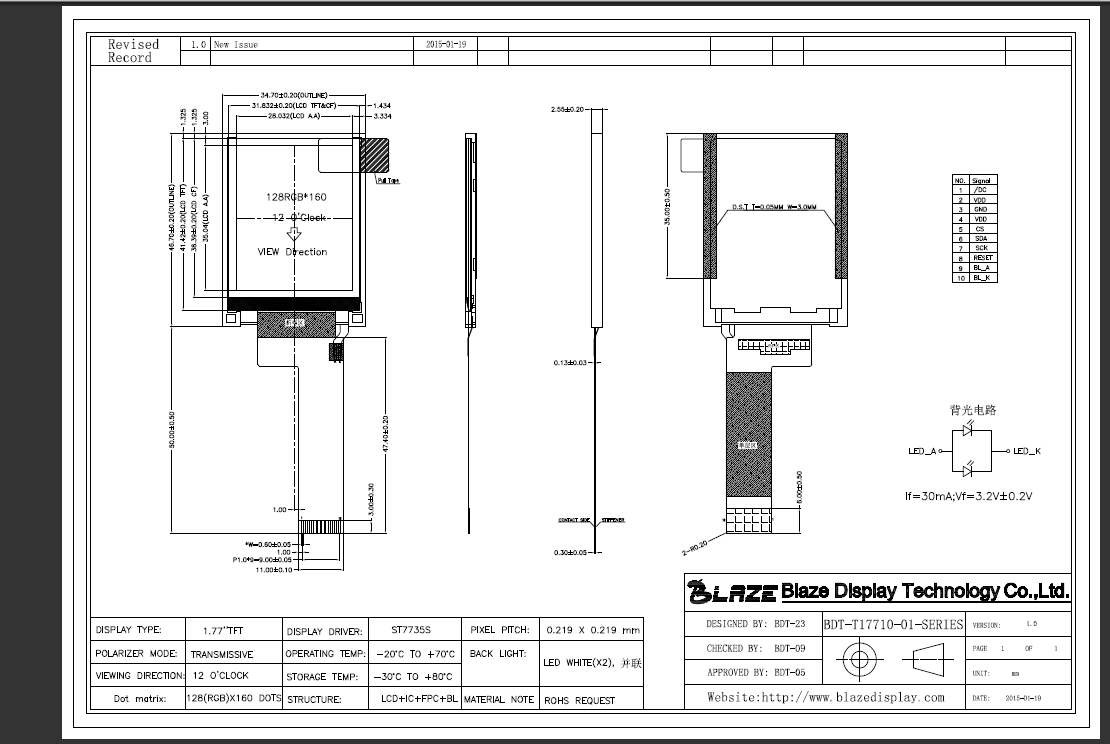

Outline size（mm）： 34.70 × 46.70 × 2.55 <br/>
LCD TFT：31.832 × 41.42 <br/>
Active Area： 28.032 × 35.04 <br/>
Controller IC： ST7735S. <br/>
Interface： SPI <br/>
TP: Optional <br/>
Backlight：LED <br/>
Part Number: BDT-T17710-01
● Display Format: 128 x 160
● Size: 1.77"
● View Direction:12H
● Interface: MCU
● Built-in Controller: ST7735S
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
SPECIFICATIONS
Interface
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
/DCLED-A |
Register select Anode of LED backlight. |
|||||||||||
|
2 |
VDD |
Power supply (TYP:2.8V). |
|||||||||||
|
3 |
GND |
Ground |
|||||||||||
|
4 |
VDD |
Power supply (TYP:2.8V). |
|||||||||||
|
5 |
CS |
Chip select signal. |
|||||||||||
|
6 |
SDA |
Serial data input |
|||||||||||
|
7 |
SCL |
Serial clock input |
|||||||||||
|
8 |
RESET |
System reset pin. |
|||||||||||
|
9 |
BL-A |
Anode of LED backlight |
|||||||||||
|
10 |
BL-K |
Cathode of LED backlight. |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
1.77 |
inch |
|||||||||||
|
Dot Matrix |
128 × RGB × 160 (TFT) |
dots |
|||||||||||
|
Module dimension |
34.70(W) × 46.70(H) × 2.55(D) |
mm |
|||||||||||
|
Active area |
28.032 × 35.04 |
mm |
|||||||||||
|
Dot pitch |
0.219 × 0.219 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max |
Unit |
||||||||
|
Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
||||||||
|
Storage Temperature |
|||||||||||||
