● Character LCD 8x1 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground |
|
2 |
VDD |
Power supply for logic |
|
3 |
VO |
Contrast Adjustment |
|
4 |
RS |
Data/ Instruction select signal |
|
5 |
R/W |
Read/Write select signal |
|
6 |
E |
Enable signal |
|
7~14 |
DB0~DB7 |
Data bus line |
|
15 |
LED-A |
Backlight power supply |
|
16 |
LED-K |
Backlight ground |
|

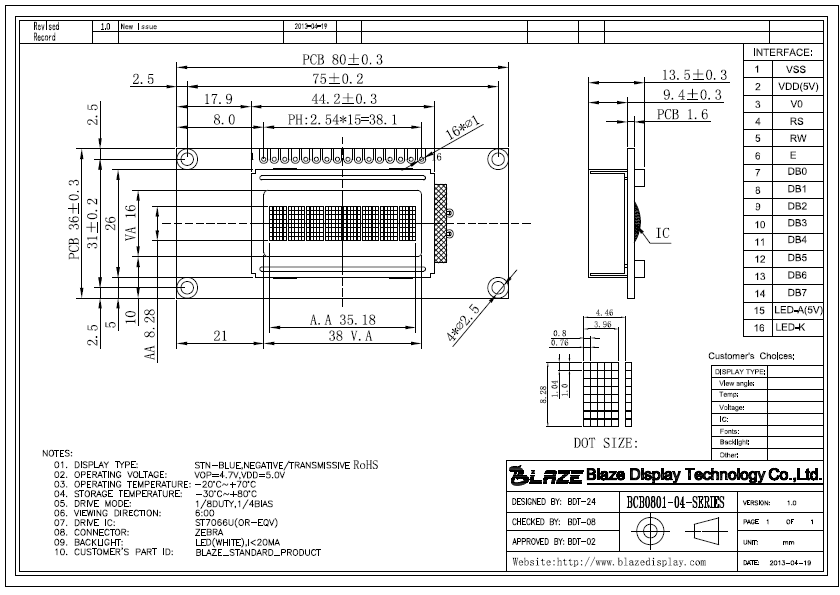

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
80.0 x 36.0 |
mm |
|
|
Viewing Area |
38.0 x 16.0 |
mm |
|
|
Mounting Hole |
75.0 x31.0 |
mm |
|
|
Character Size |
3.96x 8.28 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
