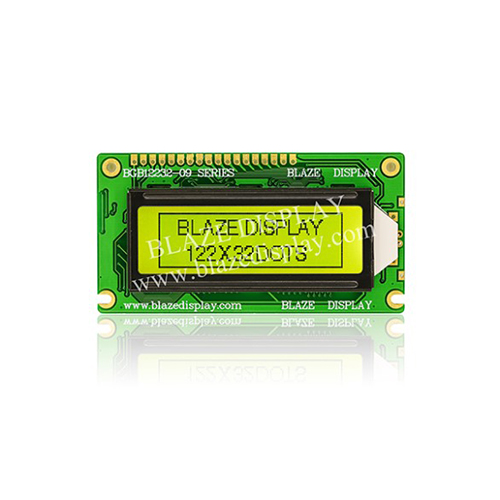

Pantalla Gráfica LCD BGB12232-09

Modelo No. BGB12232-09

Outline sizemm): 84.00 × 44.00 × 12.80

Viewing Area60.00 × 18.00

Active Area 48.76 × 14. 68

Controller IC SBN1661G.

Interface SPI & Parallel

Remarks 1×18PIN

BacklightLED

Part Number: BGB12232-09

● Grahpic LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (SBN1661G or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
